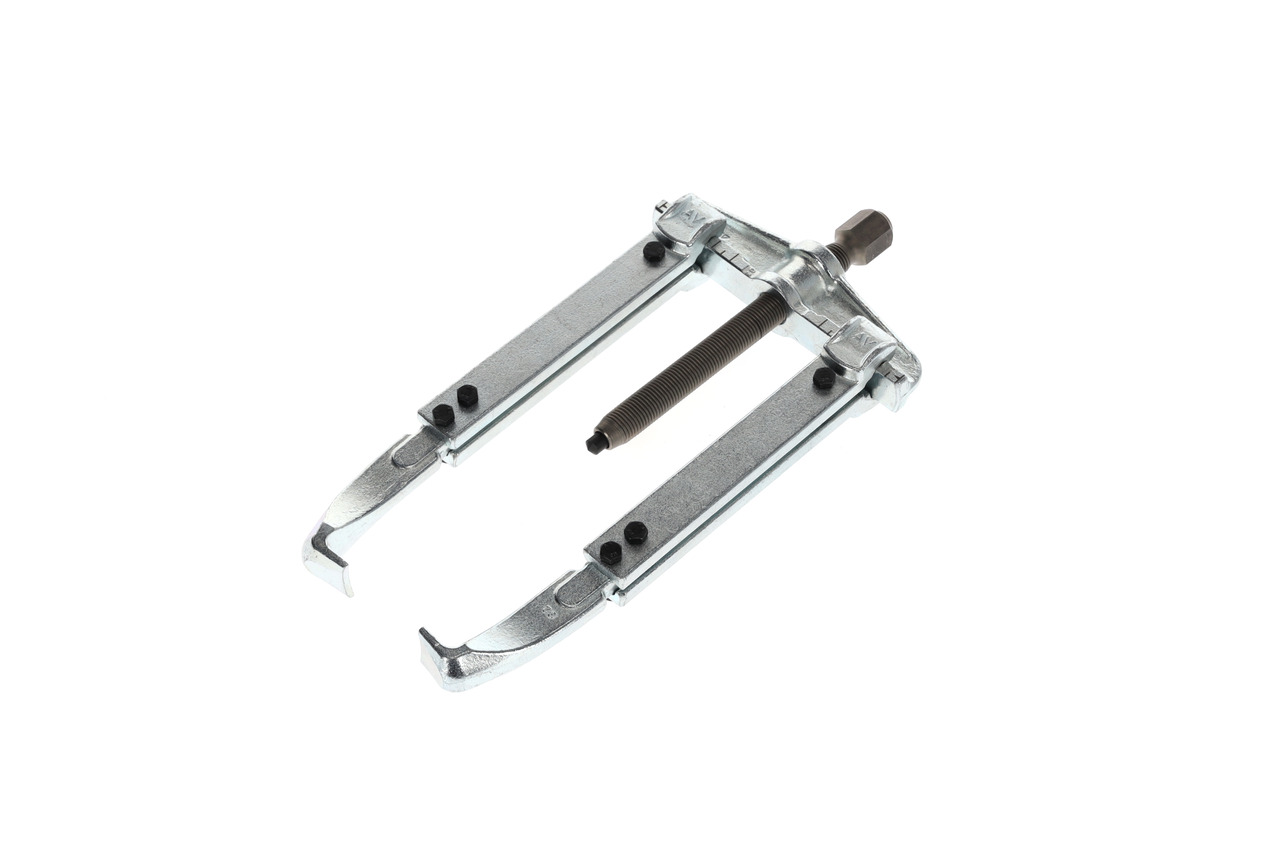

Universal puller, 2-arm pattern 90x200 mm
Ready for shipment in 6 workdays
- Item number:
- WS03608108350
- Manufacturer number:
- 1.06/1-2
- Weight:
- 1.66 kg
Universal puller, 2-arm pattern 90x200 mm
Strong drop forged pattern, Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required, Extended pulling legs, Can be used as external and internal puller by repositioning the legs, Interchangeable legs available for several clamping depths, Upgradeable with hydraulic spindle (see table)
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 1
- Total width: 135 mm
- Total height: 35 mm
- Net weight: 1,7 kg
- 1000 V insulated: No
- VDE certified: No
- 3D data available: No
- Usable clamping reach: 200 mm
- Spindle thread size: M14x1,5x140mm
- Clamping width (min.) internal pulling: 60 mm
- Clamping width (max.) internal pulling: 140 mm
- Width of hooked foot: 22 mm
- Usable depth of hooked foot: 12 mm
- Thickness of hooked foot at tip: 3,0 mm
- Width across flats [mm]: 17 mm
- Tractive force (max.): 3 t
- reversible arms available: Yes
- Clamping bracket available: No
- Number of arms: 2
- Hook brake available: No
- Hook can be moved parallel: Yes
- Quick release lever available: No
- Spindle anti-slip device: No
- Hydraulic spindle available: No
- Screws included: Yes
- Can be retrofitted with hydraulic spindle: No
- Clamping width (max.) external pulling: 90 mm
- Hydraulic spindle optional: -
- Total length: 270 mm
- Use: For removing drive pulleys, wheels, ball bearings etc.
- Version: 2-arm with extended hooks
- Graduation: x
- Number of hooks: 2
- Load of the entire puller (max.): 3 t
- Spindle Thrust piece type: Tip
- Spindle Thread length (usable): 140 mm
- Spindle Surface coating: Nitro-carburated
- Anti-slip device on the spindle: No
- Spindle Width across flats: 17 mm
- Exchangeable spindle tip: No
- Spindle holder: M14x1,5mm
