Wheel Bearing Tool Set (with mechanical drive)

Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)
Wheel Bearing Tool Set (with mechanical drive)

Ready for shipment in 6 workdays

Item number:
WS03601998056
Manufacturer number:
KL-0039-0110 K
Weight:
10.87 kg

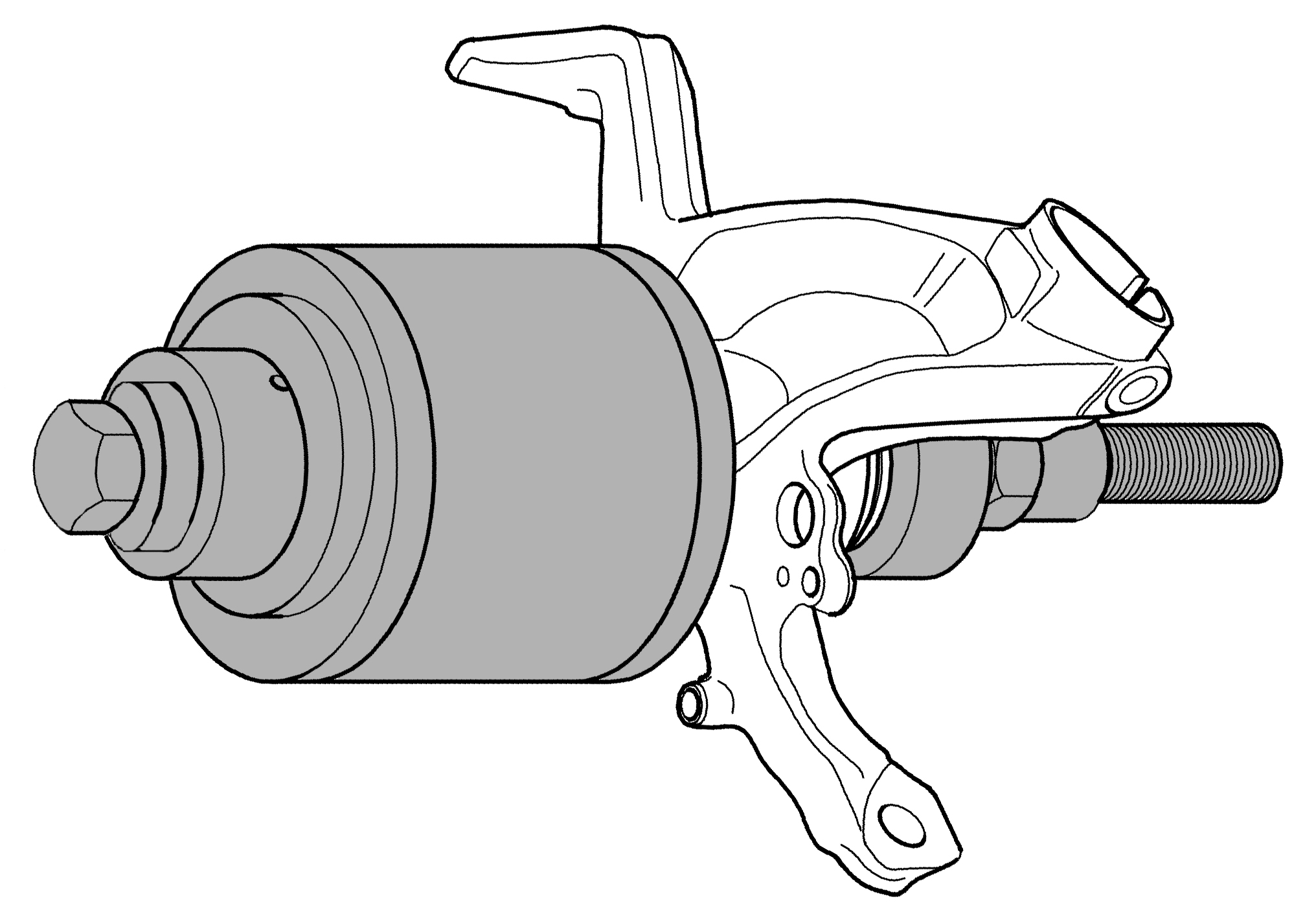

Wheel Bearing Tool Set (with mechanical drive)

For quick and professional removal and installation of wheel bearings., The special design of the thrust washers ensures safe and accurate centering when changing wheel bearings., When removing and fitting the wheel bearing, pressure is applied only to the bearing outer ring and when fitting the wheel hub, pressure is applied only to the bearing inner ring., This prevents damage to the new wheel bearing., The combination of centering and thrust rings results in thrust pieces that can be precisely matched to the bearing diameter., In the case of very tight or rusted wheel bearings, a hydraulic 17 t drive can also be used as an option., By supplementing the tool set with further parts of the [1:KL-0039-... series ]such as centering and thrust rings or thrust / support sleeves, the wheel bearing tool can be used almost universally, e.g. also for changing support joints or silent bearings.

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Contents (Qty of pieces): 25
  • Total width: 660 mm
  • Total height: 210 mm
  • Total depth: 360 mm
  • Net weight: 11 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Parts list (Text):

    1x KL-0039-140 - Gehäuse-Satz

    1x KL-0039-0101 - Druck-/Zentrierringsatz 16-teilig

    1x KL-0039-1011 - Aufnahmeadapter für mechanische Spindel

    1x KL-0039-1002 - Aufnahmeadapter für Spannmutter u. Druckspindel mit O-Ring

    1x KL-0040-3008 - Zugspindel

    1x KL-0040-3009 - Spannmutter

    1x KL-0039-0119 - Kunststoffkoffer

  • Target groups: Automotive
  • Suitable for: Suitable for VW-Audi, BMW, Ford, Seat, Škoda, Opel/Vauxhall, etc.
  • for Ø (min.): 60 mm
  • for Ø (max.): 85 mm
  • Storage: in a case
  • Drive type: mechanic
