Base Tool Kit
Ready for shipment in 6 workdays
- Item number:
- WS03603257258
- Manufacturer number:
- KL-1005-111
- Weight:
- 17.55 kg

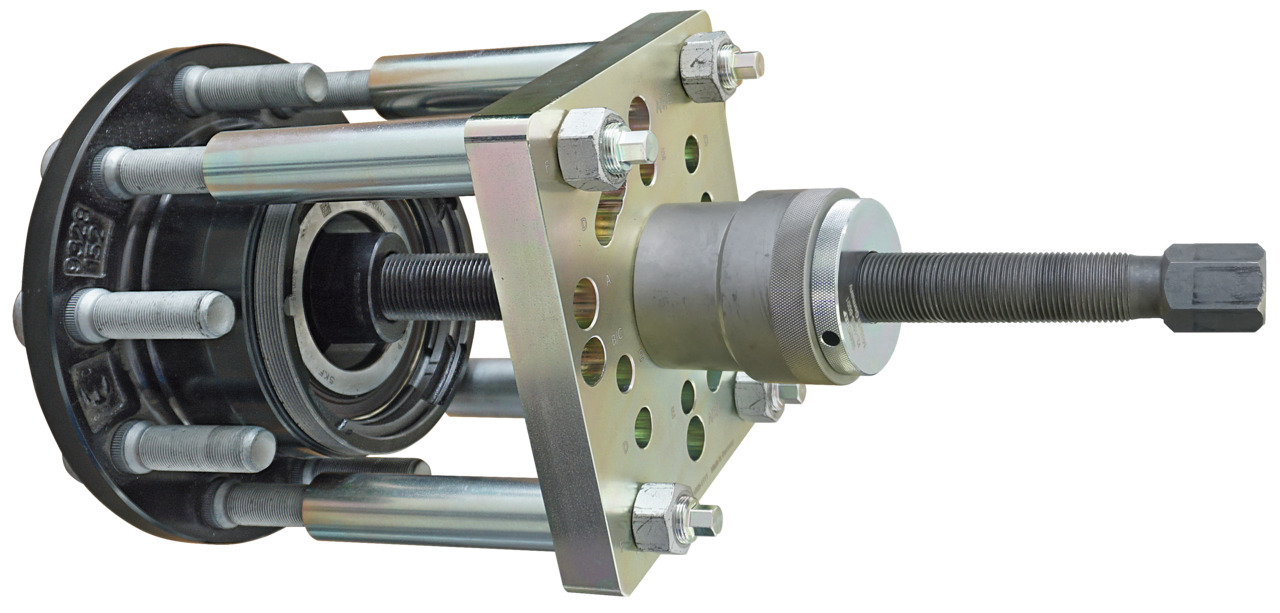

The wheel hub puller permits quick and professional removing of wheel hub/bearing units with removable hub caps., After removing the hub cap, the hub is pulled off via the threaded holes on the hub or, in the case of low-bed trailers, via the wheel studs on the wheel hub., Support is provided centrally via the axle tube with the aid of the various thrust washers., The special adapter plate offers universal adaptation to a large number of bolt circles available on the market., The 28 t hydraulic cylinder, which is available as an accessory, allows even heavily jammed wheel hubs to be removed quickly and easily.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 15
- Net weight: 17,5 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-1005-1111 - Adapterplatte
1x KL-1005-1112 - Verlängerung 2-¾"
4x KL-1005-1113 - Adapterspindel Tieflader M22x1,5
4x KL-1005-1114 - Zwischenhülse
1x KL-1005-1115 - Druckscheibe kurz
1x KL-1005-1116 - Druckscheibe Ø 48 mm
1x KL-1005-1117 - Druckscheibe Ø 58 mm
1x KL-1005-1118 - Druckscheibe Ø 68 mm
1x KL-1005-1119 - Druckscheibe Ø 78 mm
- Target groups: Construction and commercial vehicles Agriculture
- Suitable for: Universally compatible with commercial vehicle wheel hub/bearing units featuring removable hub caps for axle systems with hub bolt circle diameters of 10x120, 10x122, 10x143, 10x165, 10x168, 12x144, 12x145, 12x164, 12x168, 14x138, 14x144 mm, as well as for low-loader wheel hubs with a 10x225 mm bolt circle diameter. Installed in, for example, tractor units, trailers, and low-loaders such as Mercedes Actros, Antos, Atego, Axor, Econic; Neoplan; MAN F2000, L2000, M2000L, M2000M, TGA, TGM, TGS, TGL, TGX; Renault Magnum, Midlum, Midlum Premium, Midliner CE, M, ME, MS, S, SE; DAF LF45, LF55, LF (Euro 6); Iveco Eurocargo; Volvo FL; VDL Bova buses, line buses; Gigant Protec DNOKH2, Krone; Kögel KTA; Low-loader: BPW, Gigant, SAF; SAF Holland axles series SKRLB 9019 W, SKRB 10022; GFA solid axles; Trailer/semitrailer: Kögel, Schmitz Cargobull, Wielton, ZF, etc.
- Required accessories: Hydraulic drive (28 t): KL-0040-2800 - Hydraulic cylinder KL-0215-35 M28 - Hydraulic pump KL-0040-2812-5 - Thrust nut M24 KL-0040-2812-1 - Thrust spindle M24 Mechanical drive: KL-1005-800 - Mechanical drive kit for commercial vehicles
- Drive type: hydraulic mechanical
- Load (max.): 28 t
- Wheel stud circles: 10x120 mm | 10x122 mm | 10x143 mm | 10x165 mm | 10x168 mm | 12x144 mm | 12x145 mm | 12x164 mm | 12x168 mm | 14x138 mm | 14x144 mm | 10x225
