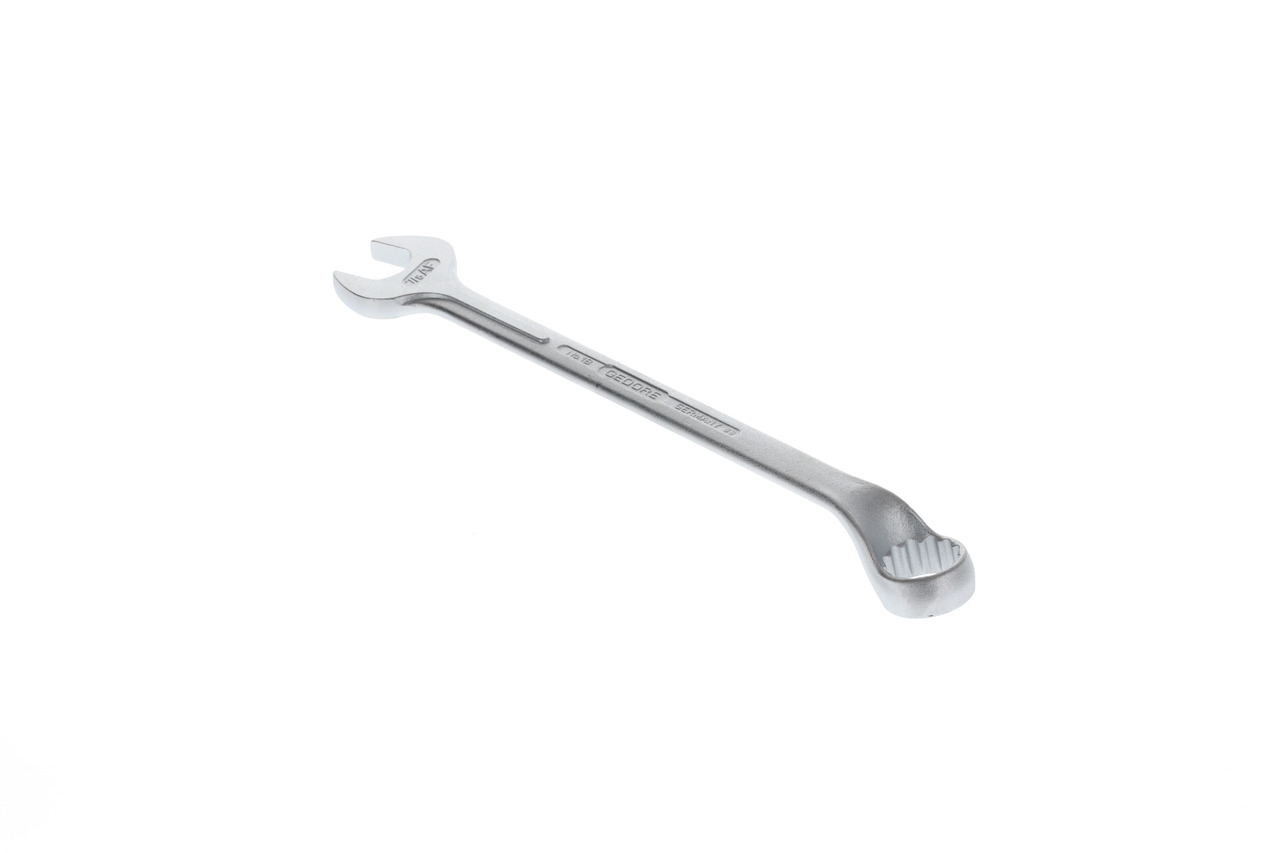

Combination spanner UD profile 7/8"
Ready for shipment in 6 workdays
- Item number:
- WS03606006360
- Manufacturer number:
- 1 B 7/8AF
- Weight:
- 0.308 kg
Combination spanner UD profile 7/8"
Design in accordance with DIN 3113, form B, ISO 3318, ISO 7738, With same size each end, Chrome-vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined, Ring: cranked and 10° angled, with UD profile for gentle power transmission, from SW 1.3/8" 12-edge ring, Jaw: ground precisely to exact nominal size for optimum contact areas, Slim ribbed open end for added strength guarantees maximum torques, Overloading indicated by deformation, The offset ring ensures a better grip on deep-seated or inset nuts or bolts, Top-grade industrial quality for the hardest of continuous use
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 47 mm
- Total height: 29 mm
- Net weight: 0,308 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 291 mm
- Material: 31CrV3
- Width of head 1: 32,5 mm
- Surface: chrome-plated
- Head height 1: 14,5 mm
- Standard: similar to DIN 3113 - Form B ISO 3318 ISO 7738
- Weight: 0,680 lbs
- Width of head 2: 48,2 mm
- Head height 2: 9 mm
- Width across flats 1: 7/8"
- Ring profile: UNIT-DRIVE
- Mouth position 1: 15°
- Height of offset 1: 27 mm
- Ring offset: 10°
