Sleeve Set for Suspension Ball Joint,

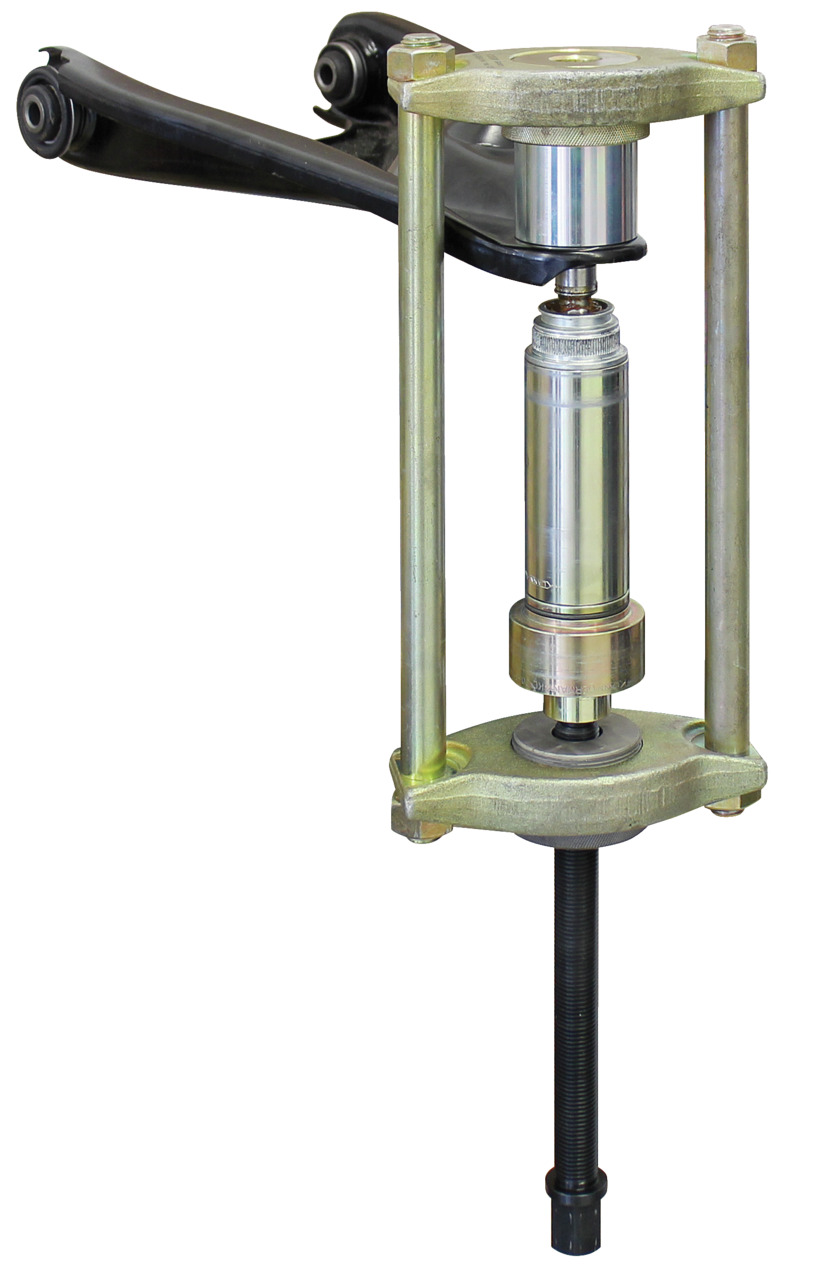

For the quick, safe and professional removal and installation of the suspension ball joint found at front axle wishbones. For this, the hydraulic cylinder KL-0040-2500, press frame KL-0039-1140, adaptor KL-0039-1002 and pressure spindle KL-0039-1930 are needed in addition. Removal and installation of the suspension ball joint can be carried out in situ on the vehicle, within a few minutes, without the need for dismantling the wishbone. Note: Alternatively, the KL-1210-221 sleeve set can also be used on an appropriate workshop press., Removal and installation of the suspension ball joint can be carried out in situ on the vehicle, within a few minutes, without the need for dismantling the wishbone., Note: Alternatively, the KL-1210-221 sleeve set can also be used on an appropriate workshop press.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 4
• Net weight: 1,6 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0711-1111 - Druckhülse kurz Ø 38 mm

  1x KL-0039-1754 - Stützhülse lang Ø 54 / 46 mm

  1x KL-0039-1746 - Druckhülse lang Ø 46 / 38 mm

  1x KL-0039-1654 - Stützhülse kurz Ø 54 / 46 mm

• Target groups: Automotive
• Suitable for: Compatible with ball joints on front axle control arms for Renault and Dacia, as well as ball joints with an additional securing collar from the manufacturer SIDEM. Installed in, for example, Renault Clio Grandtour, Clio III, Clio IV, Grand Scénic II, Megane II, Modus / Grand Modus, Scénic II, Twizy, Zoe; Dacia Logan, Logan Express, Logan MCV, Logan Pick-up, Sandero, Sandero II.
• Required accessories: Hydraulic drive (17 t):
• Note: Alternatively, the KL-1210-221 sleeve set can also be used on an appropriate workshop press.
• Drive type: hydraulic mechanical
