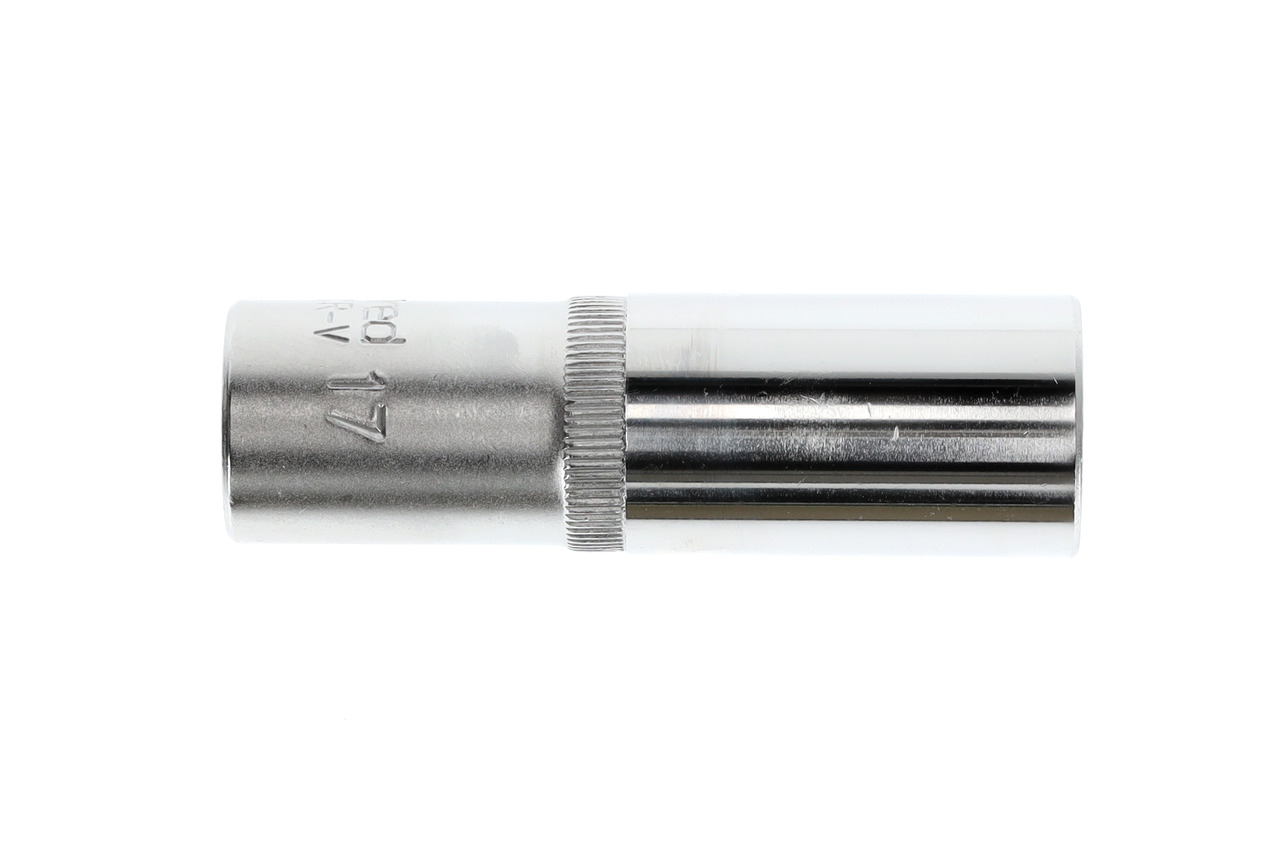

Socket 1/2 bi-hex. size17mm l.77mm
Ready for shipment in 6 workdays
- Item number:
- WS03603300420
- Manufacturer number:
- R61101714
- Weight:
- 0.12 kg
Socket 1/2 bi-hex. size17mm l.77mm
Hand-operated, knurled grip, Matt satin chrome-plated on the drive side, driven end brightly polished, Acc. to DIN 3124, ISO 2725-1, Square drive as per DIN 3120 - C 12,5, ISO 1174, with ball retention groove, Chrome-vanadium steel
Features:
- Country of origin: Taiwan
- Customs tariff number: 82042000
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 24 mm
- Total height: 24 mm
- Net weight: 0,126 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 77 mm
- Material: Chrome-vanadium steel
- Surface: matt chrome-plated (input side), bright polished (output side)
- Width across flats 1: 17 mm
- Standard: DIN 3124 ISO 2725-1 DIN 3120 – C 12,5 ISO 1174
- Drive mount, square: 12,5 mm
- Drive connector square: 1/2"
- Safety: Ball Catching Cricket
- Working length: 77,0 mm
- Insert-Ø 1: 23,0 mm
- Insert-Ø 2: 24,2 mm
