Torque wrench TORCOFIX SE 9x12 5-25 Nm

Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm
Torque wrench TORCOFIX SE 9x12 5-25 Nm

Ready for shipment in 6 workdays

Item number:
WS03603288196
Manufacturer number:
TF-SE25
Weight:
0.4 kg

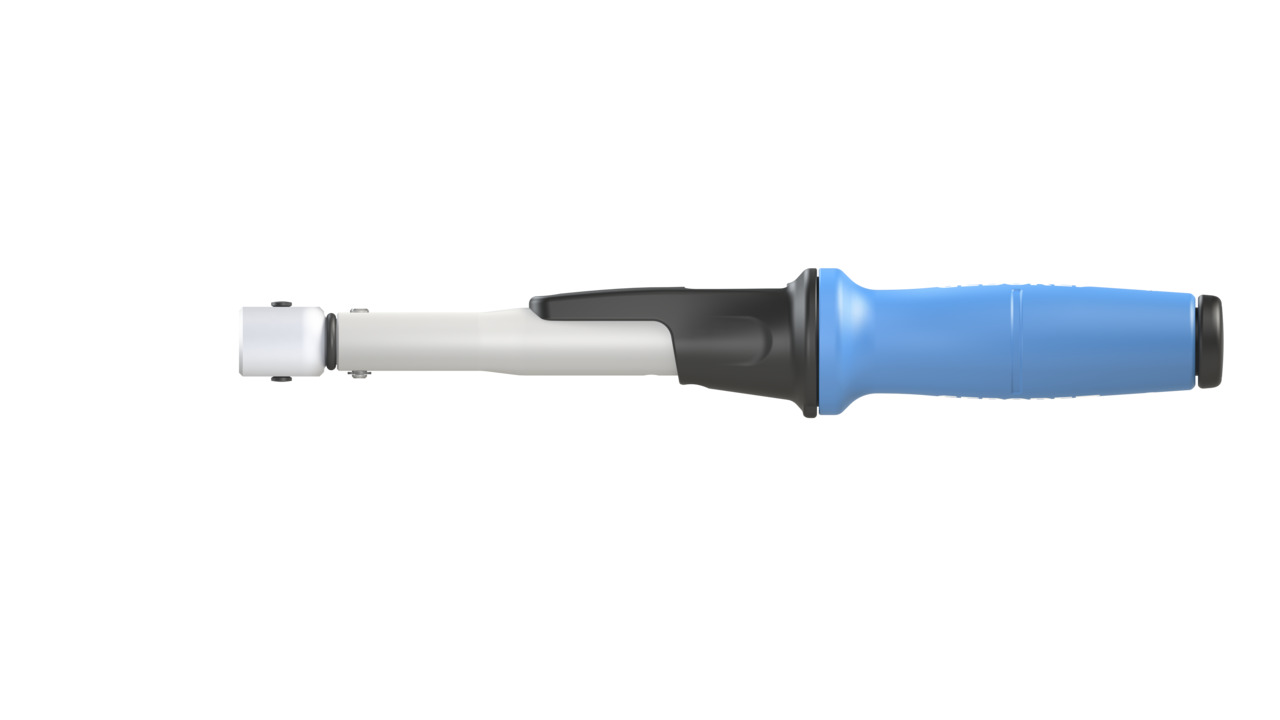

Torque wrench TORCOFIX SE 9x12 5-25 Nm

Use: Controlled screw tightening in the range of 5 - 25 Nm / 3,7 - 18 lbf·ft, Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades, Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %, Incl. traceable test certificate (DIN EN ISO 6789-2:2017), For controlled right- and left-hand tightening (insert tool for change of direction), Rectangular mount 9x12 mm including ejection aid, Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts, New ergonomic handle, shaped according to the natural grip position of the hand, Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle, Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window, With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale, Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers, Scale line positioned directly above the scale prevents reading errors (parallax errors), Unit labeling integrated in the scale frame and also protected by viewing windows,, Precise mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached, Incl. roll away protection, prevents rolling away when the tool is put down

Features:

  • Country of origin: Germany
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 39 mm
  • Total height: 39,8 mm
  • Net weight: 0,3 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 261,5 mm
  • Material: Steel tube construction with high-quality plastic parts
  • Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Agriculture Oil & Gas
  • Range of application: Assembly Series assembly Production Maintenance and repair
  • Torque (max.): 25 Nm
  • Drive type/drive: Rectangular cavity
  • Torque (min.): 5 Nm
  • Scale type: dual
  • Precision +/-: +/- 3 %
  • Tightening direction: Left and right
  • Fixed setting: No
  • Test certificate: DIN EN ISO 6789-2:2017
  • Vernier: 0,1 Nm
  • Graduation: 1
  • Torque range (min./max.): 5 Nm - 25 Nm
  • Trigger mechanism: Short path triggering
  • Drive connector rectangular: 9 x 12 mm
  • Safety: Catch lock
  • Depth gauge: 17,5 mm
  • Storage/Content: Plastic Storage Box
  • Calibration length: 261,5 mm
