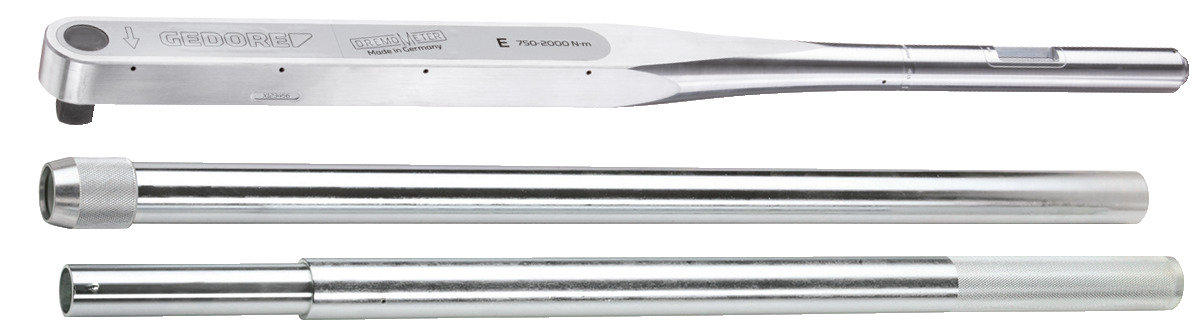

Torque wrench DREMOMETER EL 1" 750-2000 Nm
Ready for shipment in 6 workdays
- Item number:
- WS03607695410
- Manufacturer number:
- 8569-01
- Weight:
- 12 kg
Use: Controlled screw tightening in the range of 750 - 2000 Nm, For use in almost all industrial manufacturing areas, Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A, incl. traceable test certificate, calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard, 1" square drive with pin-locking mechanism DIN 3120 - B 25, ISO 1174, Automatic short-path actuation with tactile impulse and audible signal, Single scale with a scale graduation of 50 Nm, Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly, No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches), Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load., Extremely low wear attributable to reduced forces in a lever mechanism, Forged lever chain from our group own quality forge, Maximum precision even when subjected to extreme continuous use, Long life cycles and tool lives, Easy operation - fast and safe torque tightening, Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle, Single- and double-square drive for controlled bi-directional tightening
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 60 mm
- Total height: 71 mm
- Net weight: 12 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): Verlängerungsrohr No. 8564-92 + 8572-74
- Total length: 932 mm
- Material: Aluminum alloy
- Width of head 1: 60,0 mm
- Target groups: Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Oil & Gas
- Head height 1: 40 mm
- Standard: DIN 3120 - B 25 ISO 1174
- Square drive: 1"
- Range of application: Assembly Maintenance and repair
- Torque (max.): 2000 Nm
- Drive type/drive: Single square rigid
- Torque (min.): 750 Nm
- Distance housing - square drive: 30 mm
- Scale type: Mono
- Precision +/-: +/- 3 %
- Tightening direction: Left and right
- Fixed setting: No
- Test certificate: DIN EN ISO 6789-2:2017
- Fuse output square drive: Locking pin
- Torque range (min./max.): 750 Nm - 2000 Nm
- Trigger mechanism: Short path triggering
- Graduation: 50 Nm
- Storage/Content: Box
- Torque wrench type: EL
- Calibration length: 2213 mm
- Length extension tube: 925 mm
- Length of slip-on tube 2: 745 mm
