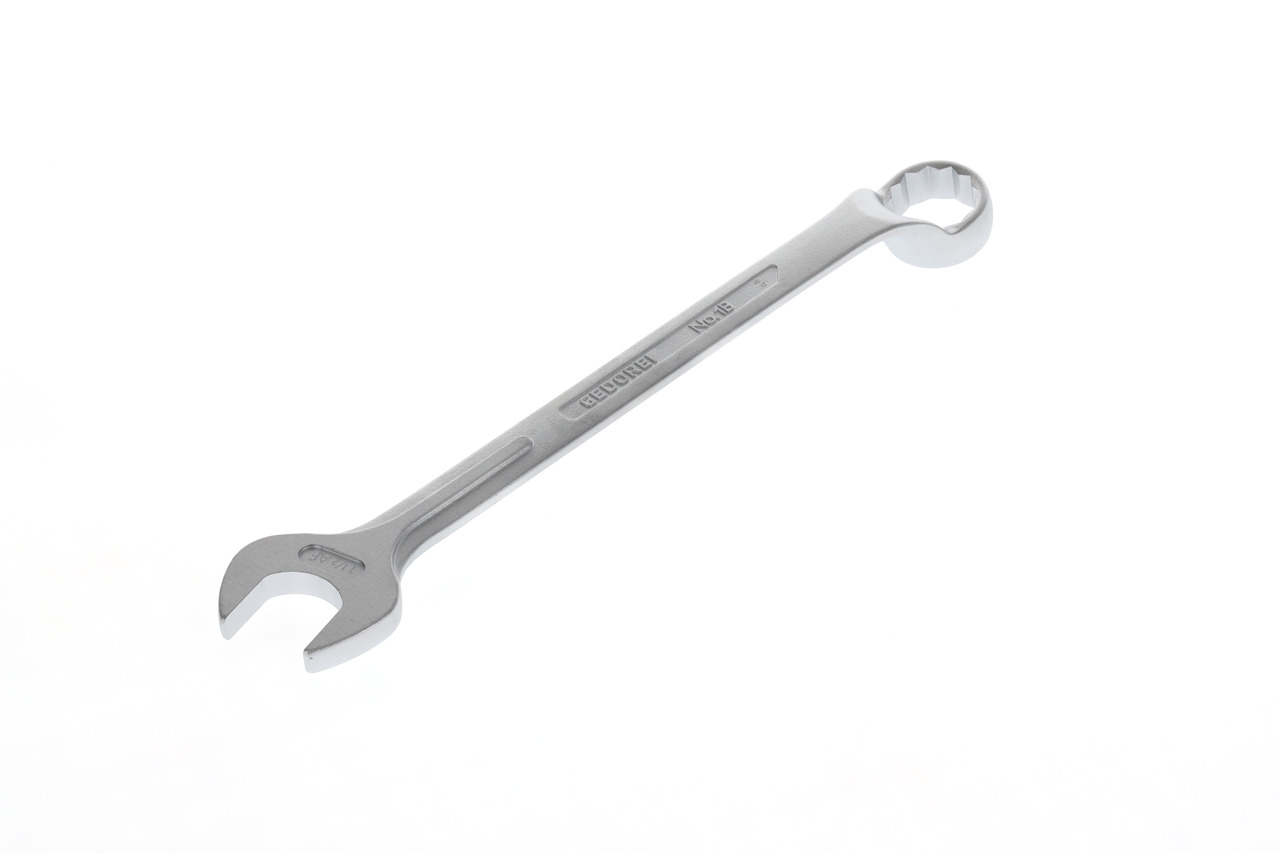

Combination spanner bi-hexagon 1.1/2"
Ready for shipment in 6 workdays
- Item number:
- WS03606007250
- Manufacturer number:
- 1 B 1.1/2AF
- Weight:
- 1.113 kg
Combination spanner bi-hexagon 1.1/2"
Design in accordance with DIN 3113, form B, ISO 3318, ISO 7738, With same size each end, Chrome-vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined, Ring: cranked and 10° angled, with UD profile for gentle power transmission, from SW 1.3/8" 12-edge ring, Jaw: ground precisely to exact nominal size for optimum contact areas, Slim ribbed open end for added strength guarantees maximum torques, Overloading indicated by deformation, The offset ring ensures a better grip on deep-seated or inset nuts or bolts, Top-grade industrial quality for the hardest of continuous use
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 80 mm
- Total height: 44 mm
- Net weight: 1,113 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 465 mm
- Material: 31CrV3
- Width of head 1: 56,0 mm
- Surface: chrome-plated
- Head height 1: 24,2 mm
- Standard: similar to DIN 3113 - Form B ISO 3318 ISO 7738
- Weight: 2,450 lbs
- Width of head 2: 79,2 mm
- Head height 2: 13,2 mm
- Width across flats 1: 1.1/2"
- Ring profile: bi-hex
- Mouth position 1: 15°
- Height of offset 1: 43 mm
- Ring offset: 10°
