Assembly Lever, with Guide Pins
Ready for shipment in 6 workdays
- Item number:
- WS03603238768
- Manufacturer number:
- KL-0243-10
- Weight:
- 0.175 kg
Assembly Lever, with Guide Pins

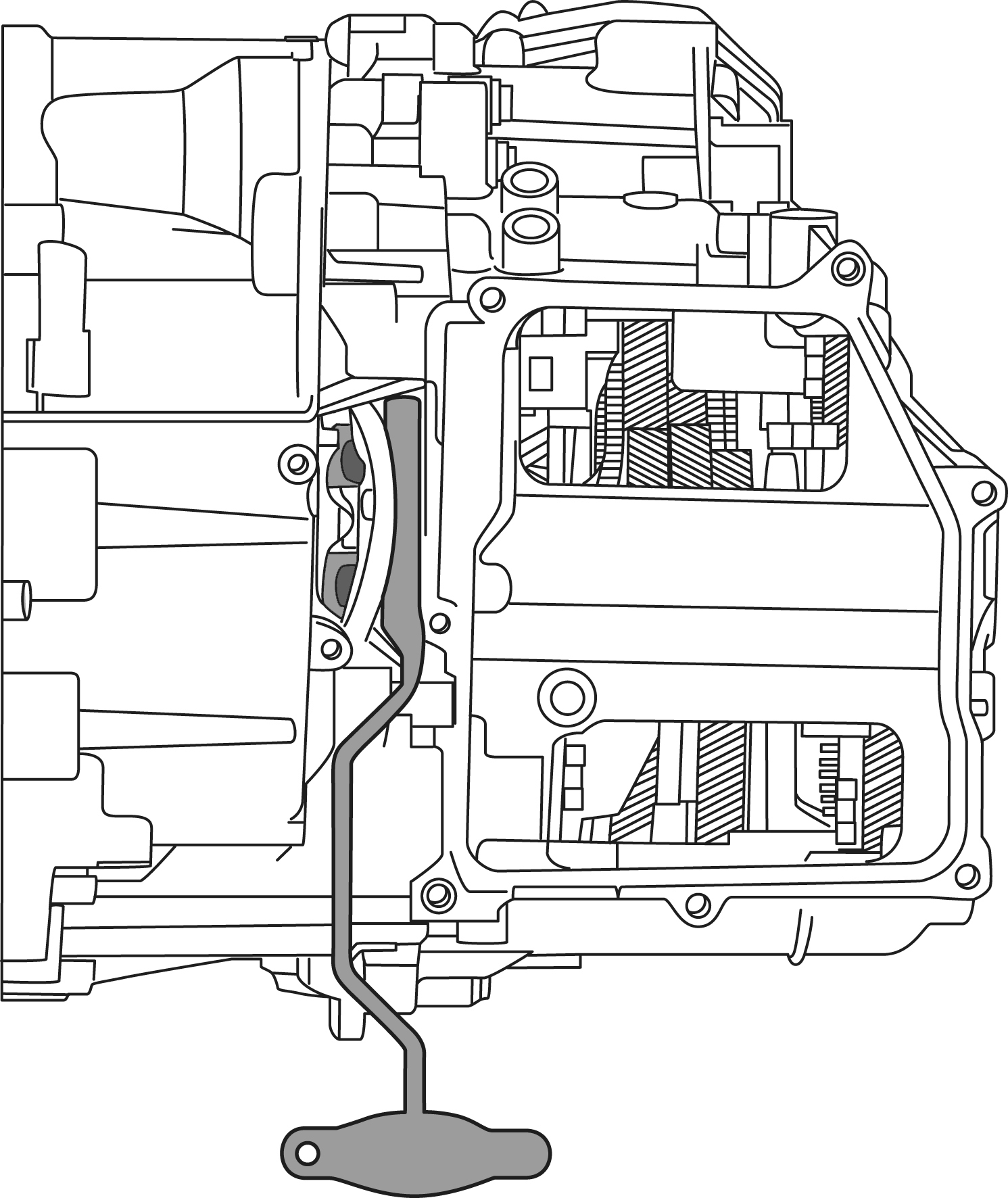

Necessary for pre-tensioning and fixing the clutch engagement lever during removal and installation of the mechatronics unit on the DSG gearbox., The guide bolts included in the scope of delivery, ensure a straight aligned installation of the mechatronics unit.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 3
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-0243-1002 - Fixierhebel für Stößel
2x KL-0243-1001 - Führungsbolzen
- OEM: T10407|T10406
- Target groups: Automotive Construction and commercial vehicles
- Suitable for: Compatible with VW-Audi, Seat, and Skoda vehicles with a transversely mounted 7-speed dual-clutch transmission (0AM). Installed in, for example, Audi A3 (8P); VW Polo (6R, 6C), Golf (1K), Golf Plus (1KP), Touran (1T), Eos (1F), Passat (3C), Passat CC (35), Scirocco (13); Seat Ibiza V (KJ), Toledo (5P); Škoda Fabia (5P), Octavia (1Z), etc.
- Length basic tool: 270 mm
