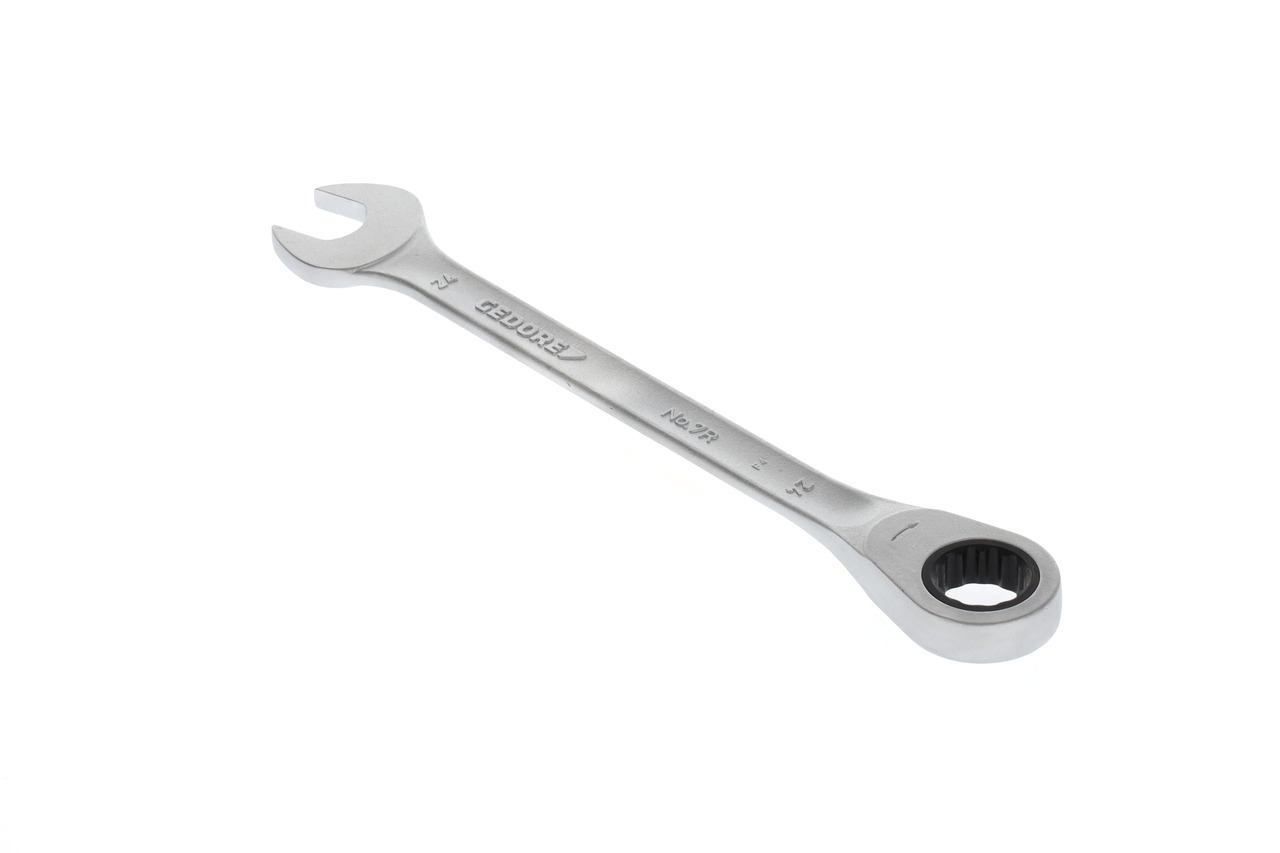

Combination ratchet spanner UD profile 24 mm
Ready for shipment in 6 workdays
- Item number:
- WS03602297205
- Manufacturer number:
- 7 R 24
- Weight:
- 0.45 kg
Combination ratchet spanner UD profile 24 mm
With same size each end, UD-Profile, High torque transfer, Chrome-vanadium steel 31CrV3, Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated, Hot forged, Jaw: ground precisely to exact nominal size for optimum contact areas, In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet, Hollow profile comfortable to hold, Warp-resistant geometry with double T-girder effect, For ratchet loosening and fast tightening, Ring 13° offset from shaft, reversible
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 54 mm
- Total height: 15 mm
- Net weight: 0,52 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 325 mm
- Material: 31CrV3
- Width of head 1: 48,0 mm
- Surface: chrome-plated
- Head height 1: 14,8 mm
- Width across flats [mm]: 24,0 mm
- Standard: not standardised
- Return angle: 6 °
- Width of head 2: 52,5 mm
- Head height 2: 7,9 mm
- Ring profile: UNIT-DRIVE
- Jaw set: 15 °
