Combination spanner UD profile 16 mm
Ready for shipment in 6 workdays
- Item number:
- WS03606001560
- Manufacturer number:
- 1 B 16
- Weight:
- 0.128 kg

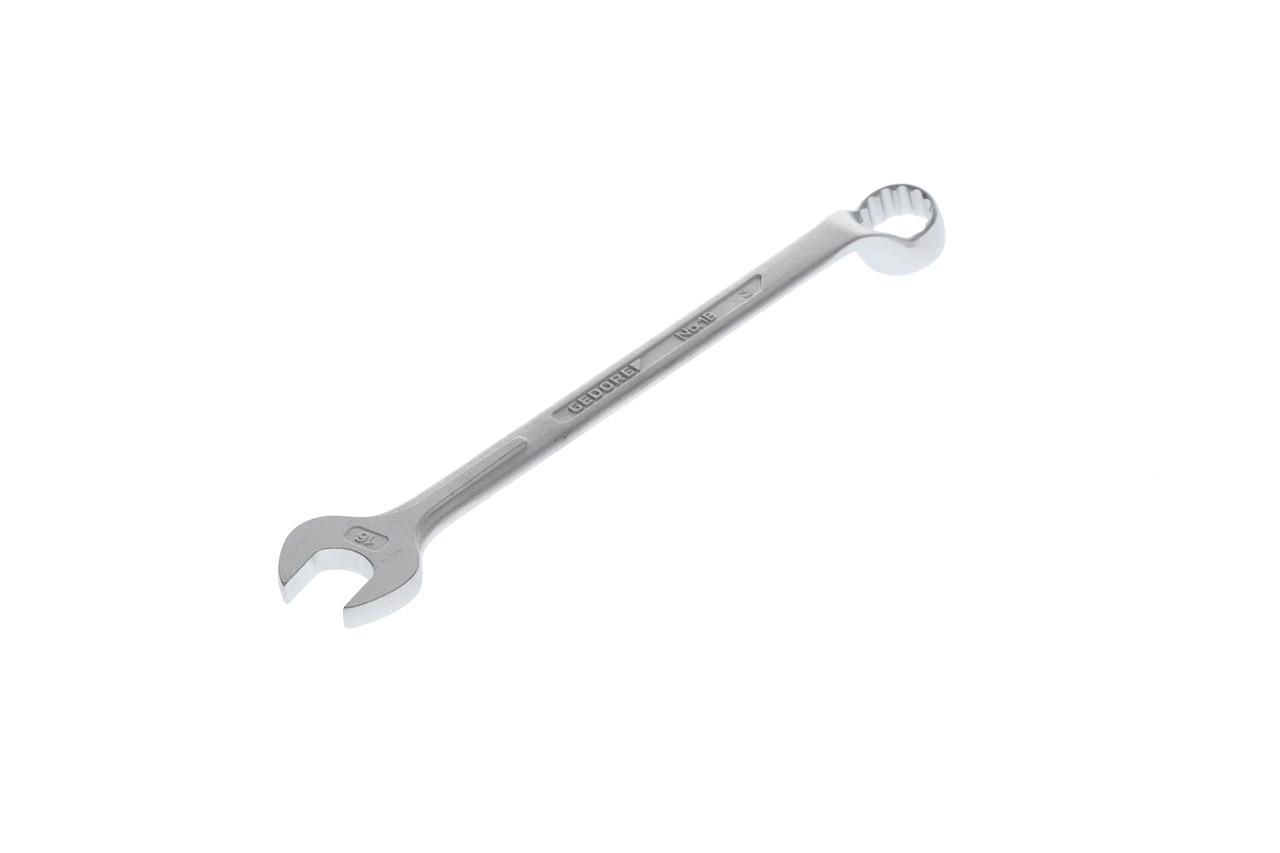

Combination spanner UD profile 16 mm
Acc. to DIN 3113, Form A, ISO 3318, ISO 7738, Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile, Chrome-vanadium steel 31CrV3, chrome-plated, Carefully forged and professionally machined, Ring: 10° offset from shaft, with UD profile for gentle transmission of force, Overloading indicated by deformation, The offset ring ensures a better grip on deep-seated or inset nuts or bolts, Top-grade industrial quality for the hardest of continuous use, * not standardised
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 34 mm
- Total height: 21 mm
- Net weight: 0,128 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 220 mm
- Material: Vanadium steel 31CrV3
- Width of head 1: 23,5 mm
- Surface: chrome-plated
- Width across flats 1: 16 mm
- Head height 1: 12 mm
- Standard: DIN 3113 - Form B ISO 3318 ISO 7738
- Weight: 0,280 lbs
- Width of head 2: 36 mm
- Head height 2: 7 mm
- Ring profile: UNIT-DRIVE
- Mouth position 1: 15°
- Height of offset 1: 20 mm
- Ring offset: 10°
