Locking Tool Set, 2.3, 2.8 and 3.0 JTD

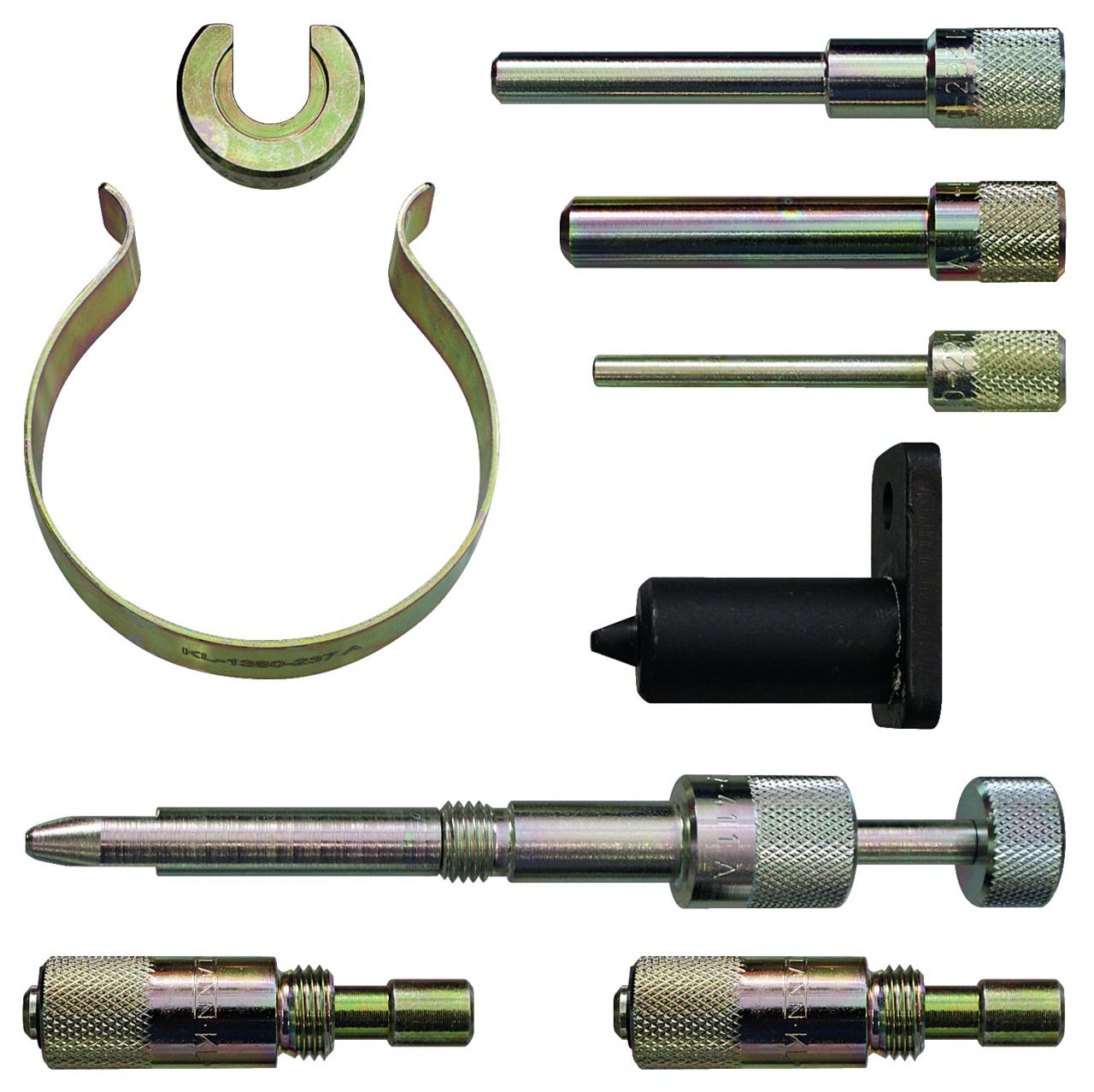

Designed for the locking/positioning of the injection pump shaft, camshafts and crankshaft. The kit also includes tools to lock the timing belt tensioner and to fix the timing belt during installation. An indispensable tool set when replacing a timing belt or performing an engine repair. Scope of Delivery: KL-0680-2201 A Locking Pin, Ø 11mm. For locking the flywheel. KL-1280-233 B Locking Pin, Ø 7.9/11.9mm. For locking the flywheel. For locking the injection pump. KL-1682-2601 Locking Tool for Flywheel. For locking the flywheel. KL-1380-2213 A Locking Pin, Ø 4.9mm. For locking the flywheel. For locking the camshaft. For locking the injection pump. KL-1682-2401 Spacer Sleeve for Timing Belt. For locking the timing belt tensioner. KL-1682-410 A Locking Tool for Camshaft. For locking the camshafts. KL-1682-411 A Locking Tool for Crankshaft. For locking the crankshaft. KL-1380-237 A Retaining Clip for Timing Belt. For retaining the timing belt on the crankshaft during positioning. KL-1682-2690 Plastic Storage Case., Required when changing the timing belt or repairing the engine.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 9
• Total width: 235 mm
• Total height: 48 mm
• Total depth: 185 mm
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0680-2201 A - Arretierdorn Ø 11 mm

  1x KL-1280-233 B - Arretierdorn Ø 7,9 / 11,9 mm

  1x KL-1682-2601 - Arretierwerkzeug Schwungrad

  1x KL-1380-2213 A - Arretierdorn Ø 4,9 mm

  1x KL-1682-2401 - Distanzhülse Zahnriemen

  1x KL-1682-410 A - Arretierwerkzeug Nockenwelle

  1x KL-1682-411 A - Arretierwerkzeug Kurbelwelle

  1x KL-1380-237 A - Zahnriemen-Halteklammer

  1x KL-1682-2690 - Kunststoffkoffer

• OEM: 0187-J|0188-K|0189-K|0191-H|0194-C|Mot.1054|1.860.617.000|1.860.638.000|1.870.900.100|4533-TAD|Mot.910|99360608|99360614|99360615|99395214|0191-2A|0191-2B|0191-A|0191-B|0192-A|1.870.765.001|0192-B|0132-AK|KM-6031|0153-AK|2.000.018.200
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Suitable for Fiat, Citroën, Peugeot, and Iveco 2.3, 2.8, and 3.0 Diesel engines. Used in vehicles such as Fiat Ducato; Peugeot Boxer; Citroën Relay, Jumper; Iveco Daily.
• for motor type: Diesel
• Storage: in a case
