Upgrade Kit, Rear Axle Carrier (W204)

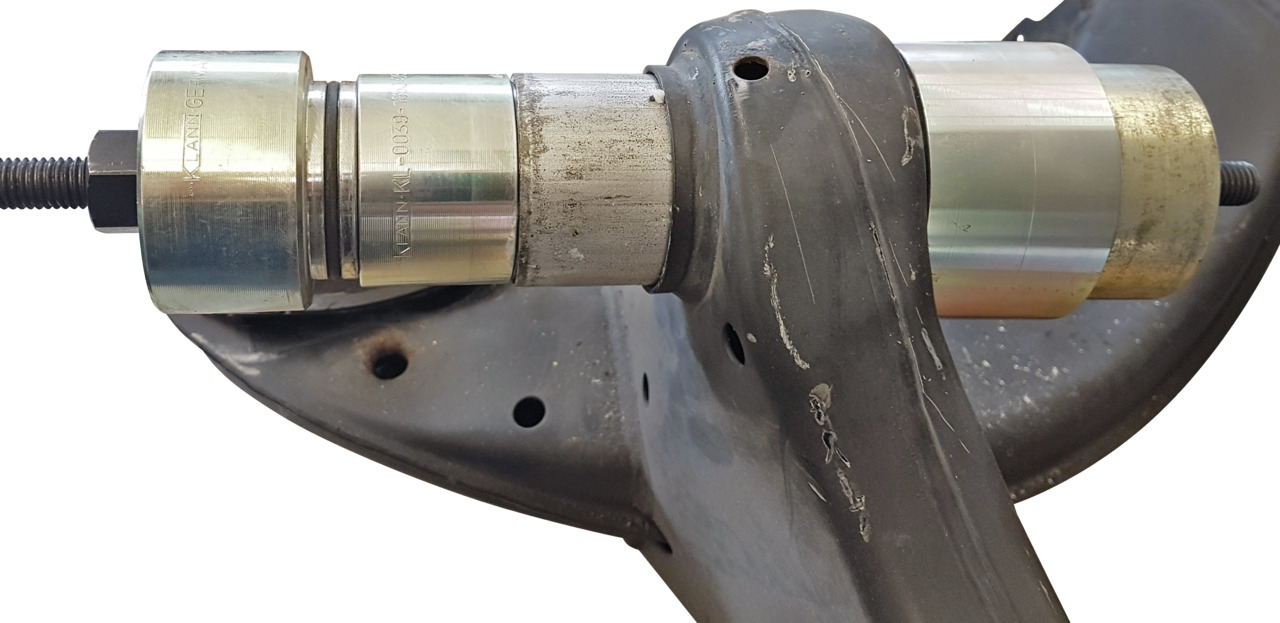

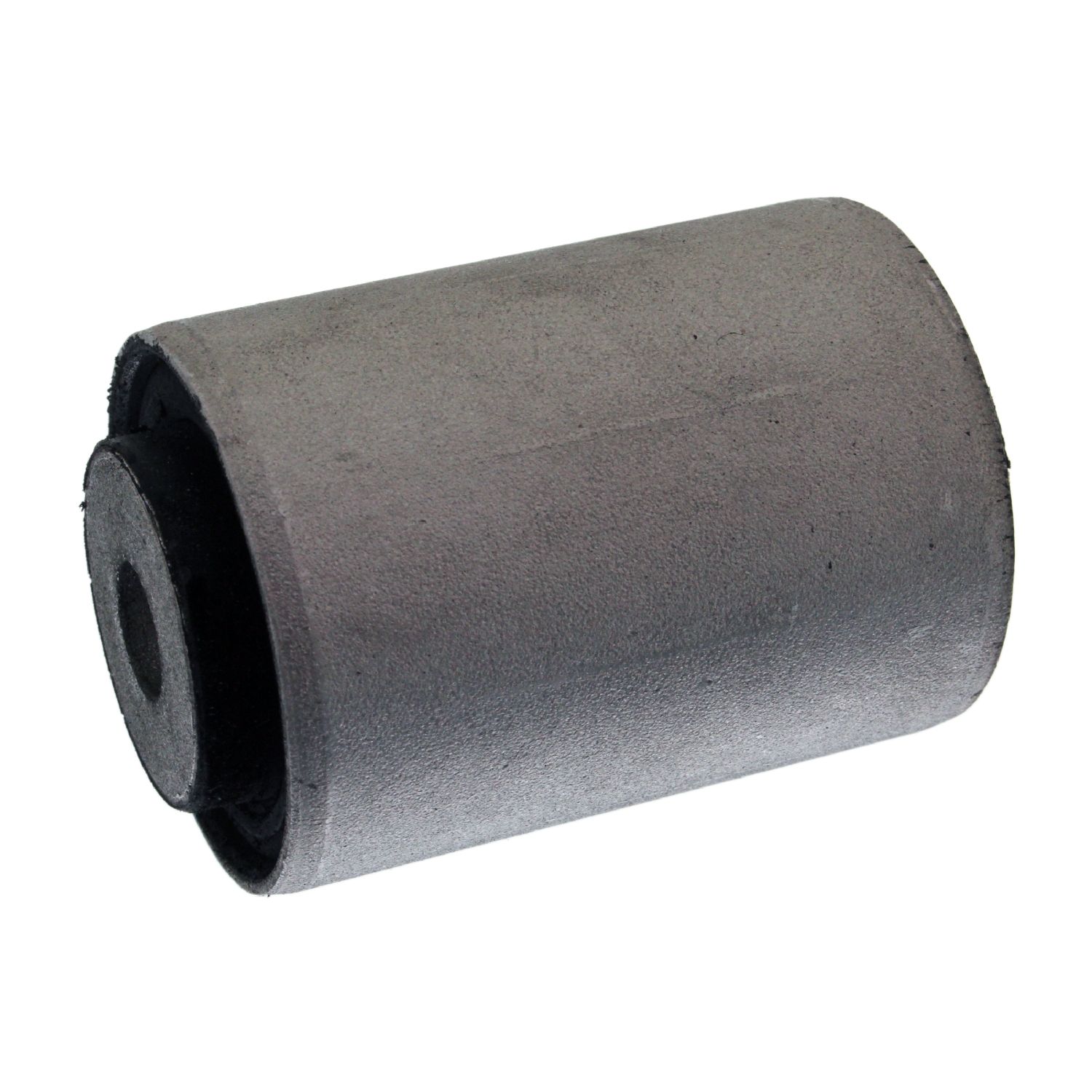

The supplementary kit, in conjunction with the press frame KL-0326-1000 as well as the required drive parts, enables the lower spring control arm silent block on the rear axle beam to be quickly removed and installed directly on the vehicle., A time-consuming removal of the rear axle beam is not necessary., When dismantling the suspension link, the fastening screw, which is directly in the silent block, breaks off very often, so that the removal with a pull spindle is no longer possible., Together with the thrust spindle, the special press frame KL-0326-1000, which is used when removing the silent block, makes the use of a pull spindle unnecessary., Note: Alternatively, it is also possible to remove the silent block without the press frame - KL-00326-1000 and thrust spindle KL-0039-1930. However, the hole on the silent block must be continuous, and the support sleeve - KL-0039-1772 (accessory) is also required.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 3
• Net weight: 1 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0356-1421 - Druckhülse Ausbau Ø 50/42 mm

  1x KL-0039-1672 - Druckhülse Einbau Ø 72/64 mm

  1x KL-0326-1111 - Adapterring 1 mit O-Ring

• OEM: W 204 589 04 43 00|W 220 589 01 43 00
• Target groups: Automotive
• Suitable for: Suitable for Mercedes C-Class (W204, S204, C204, X204), E-Class (W212, S212) + (A207, C207), CLS (W218, X218), SL (R231).
• Required accessories: Hydraulic drive (17 t):
• Drive type: hydraulic mechanical
• Load (max.): 7 t
