Pulling Device, without Drive
Ready for shipment in 6 workdays
- Item number:
- WS03602737493
- Manufacturer number:
- KL-0214-221
- Weight:
- 4.91 kg

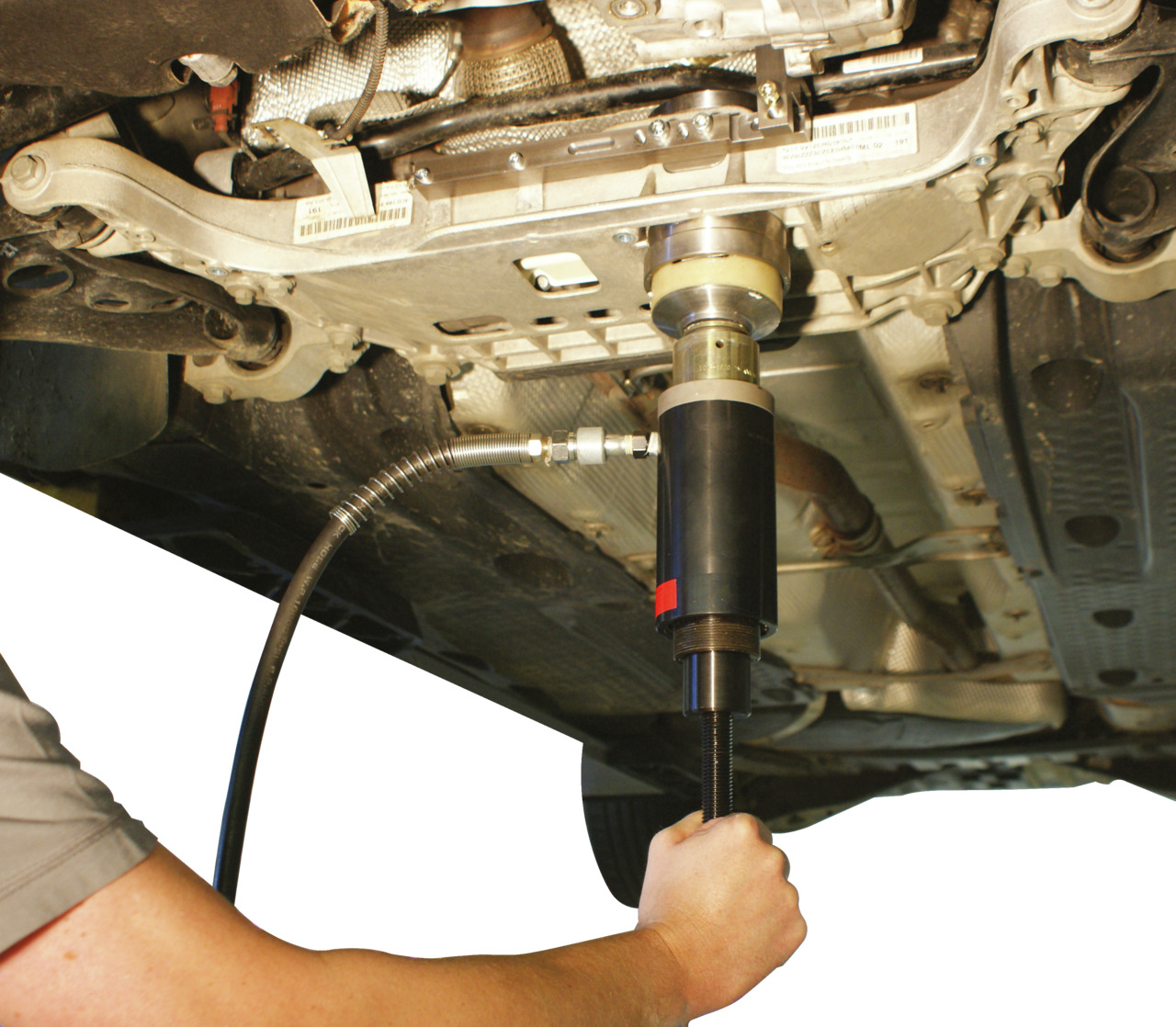

The KL-0214-221 pulling device allows the quick and safe removal and installation of assembly carrier double-type silentblocs to be performed in situ on the vehicle. For this, the hydraulic cylinder KL-0040-2500 and retaining adaptor KL-0039-1003, pull spindle KL-0039-1912-1 and shoulder nut KL-0039-1912-3 are needed. Releasing or removing the assembly carrier from the vehicle as well as follow-up wheel alignments are not necessary., Releasing or removing the assembly carrier from the vehicle as well as follow-up wheel alignments are not necessary., Pros: • Substantial time and cost savings., • No loosening or removal of the unit carrier required., • No wheel alignment required., • All individual parts available as spare parts.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 9
- Net weight: 4,9 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-0214-2201 - Druckstück Ø 89,5 mm
1x KL-0214-2202 - Distanzring Ø 30 mm
1x KL-0214-2203 A - Positionsplatte
1x KL-0214-2204 - Konische Hülse Ø 90 mm
1x KL-0214-2205 - Stützhülse Ø 92,7 mm
1x KL-0214-2206 - Klemmbügel mit Schraube
1x KL-0214-2207 - Klemmvorrichtung
1x KL-0214-2208 - Kunststoffkeil-Satz
- Target groups: Automotive
- Suitable for: Compatible with Audi A3 (8P1), TT (8J3, 8J9) up to 06/2010; Seat Altea (5P5, 5P5, 5P8), Leon (1P1), Toledo III (5P2); Škoda Octavia (1Z3, 1Z5) up to 12/2010; VW Caddy (2K/2C), EOS (1F7, 1F8), Golf Plus (5M1, 521), Golf V (1K1, 1K5), Golf VI (5K1, AJ5), Jetta (1K2), Touran (1T1, 1T2, 1T3), Passat (3C2, 3C5, 362, 365), Scirocco (137), Tiguan (5N).
- Required accessories: Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump KL-0039-1003 - Mounting adapter KL-0039-1912-1 - Pull spindle KL-0039-1912-3 - Collar nut, flat
- Drive type: hydraulic
