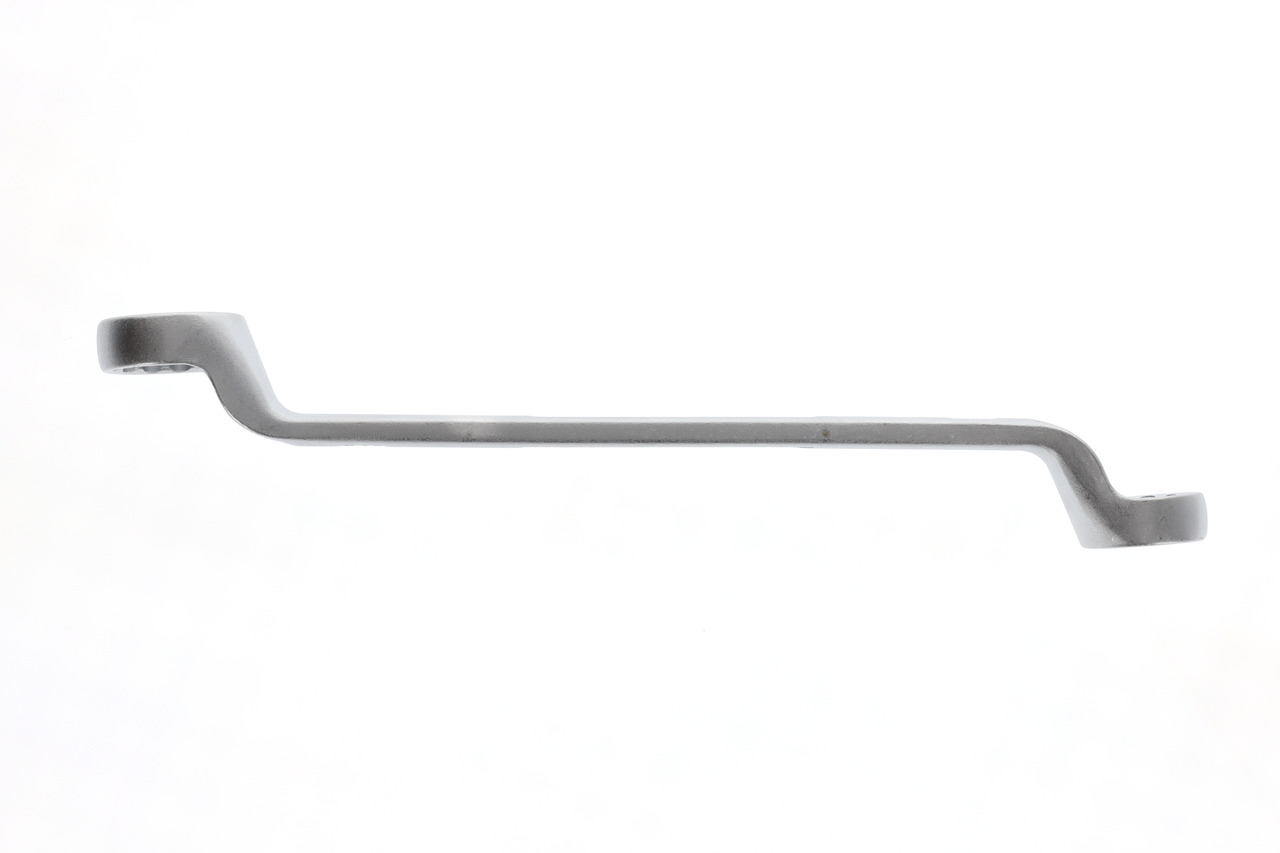

Double ended ring spanner offset UD profile 36x41
Ready for shipment in 6 workdays
- Item number:
- WS03606019500
- Manufacturer number:
- 2 36X41
- Weight:
- 1.166 kg
Double ended ring spanner offset UD profile 36x41
Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104, Rings deep offset, strong but thin walls, Vanadium steel 31CrV3, chrome-plated, Satin non-glare finish, Carefully forged and professionally machined: Ring: thin-walled, 5° deep offset from shaft, with UD profile for gentle transmission of force, High bending strength - does not fracture or splinter when overloaded, thus minimising the risk of injury, Overloading indicated by deformation, For extremely deep or inset bolts, Top-grade industrial quality for the hardest of continuous use
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 58 mm
- Total height: 49 mm
- Net weight: 1,166 kg
- 1000 V insulated: No
- VDE certified: No
- Total length: 450 mm
- Material: 31CrV3
- Width of head 1: 53,0 mm
- Version: Rings deep offset, strong but thin walls
- Surface: chrome-plated
- Width across flats 1: 36 mm
- Width across flats 2: 41 mm
- Head height 1: 19,4 mm
- Width across flats [mm]: 36x41 mm
- Standard: DIN 838 ISO 3310 ISO 1085 ISO 10104
- Width of head 2: 60,5 mm
- Head height 2: 20,4 mm
- Ring profile: UNIT-DRIVE
- Height of offset 1: 40,4 mm
- Ring offset: 5°
