Brake Piston Push-Back/Wind-Back Kit

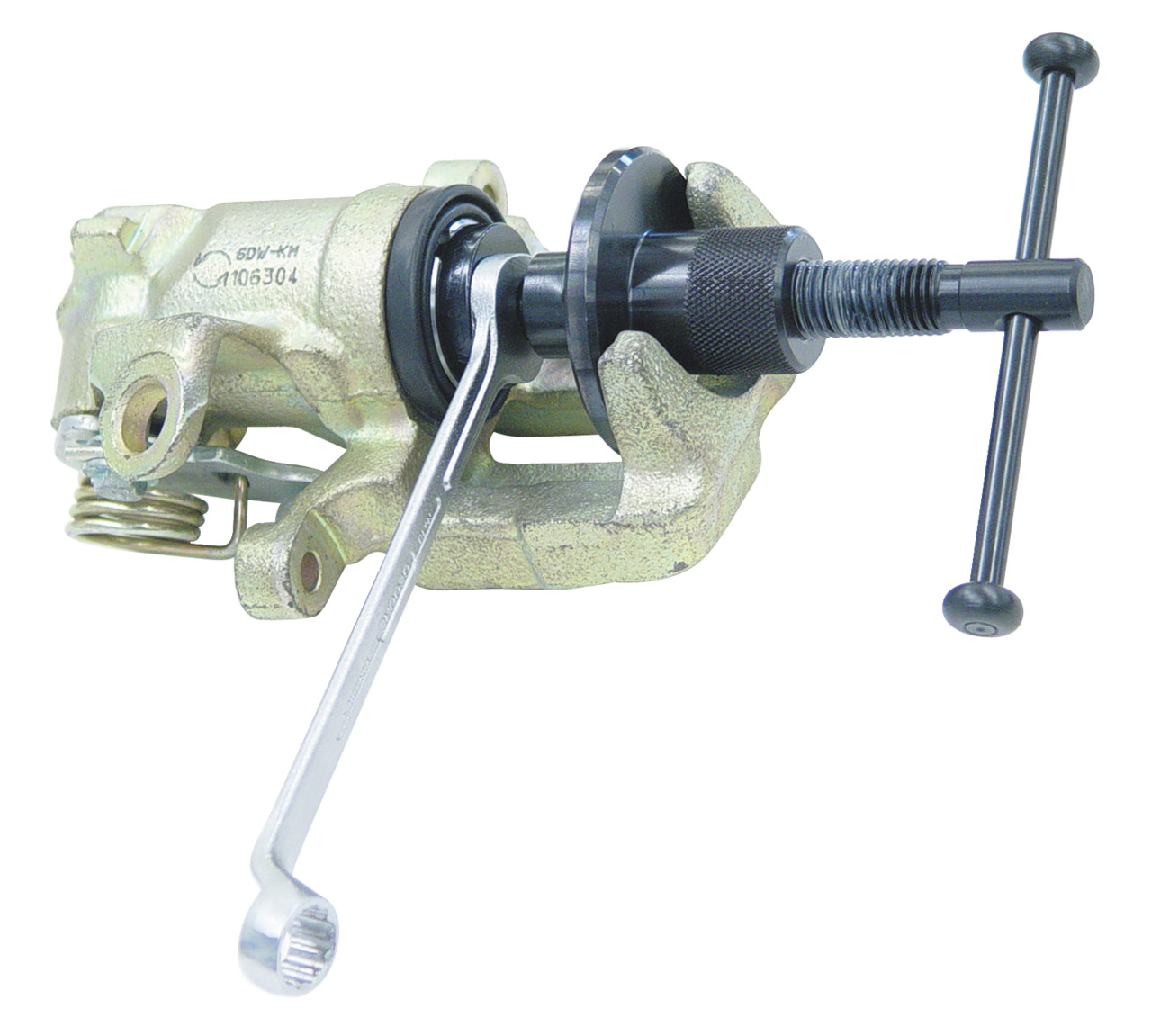

For resetting (pushing or turning) brake pistons on floating brake calipers with or without mechanical and electric handbrake locking device., Can be used for right-hand and left-hand threads. The piston is turned back via the hexagon on the thrust piece., • The handy toggle enables controlled resetting of the brake piston or guiding of the adapter., • The pressure-bearing adapter mount ensures professional and damage-free resetting., • The reset takes place via the hexagon on the respective adapter. This prevents damage to the brake piston spindle and wedging of the resetting tool due to different spindle pitches in the tool and in the brake caliper., • Adapters specially adapted to the brake piston (in profile and outer Ø) prevent damage to the piston or sleeve when resetting., • Possibility of supplementing the tool set with new, specially adapted adapters for new vehicles or brake systems., • Very low height and no intermediate adapters required.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 11
• Total width: 275 mm
• Total height: 85 mm
• Total depth: 230 mm
• Net weight: 1,8 kg
• 1000 V insulated: No
• VDE certified: No

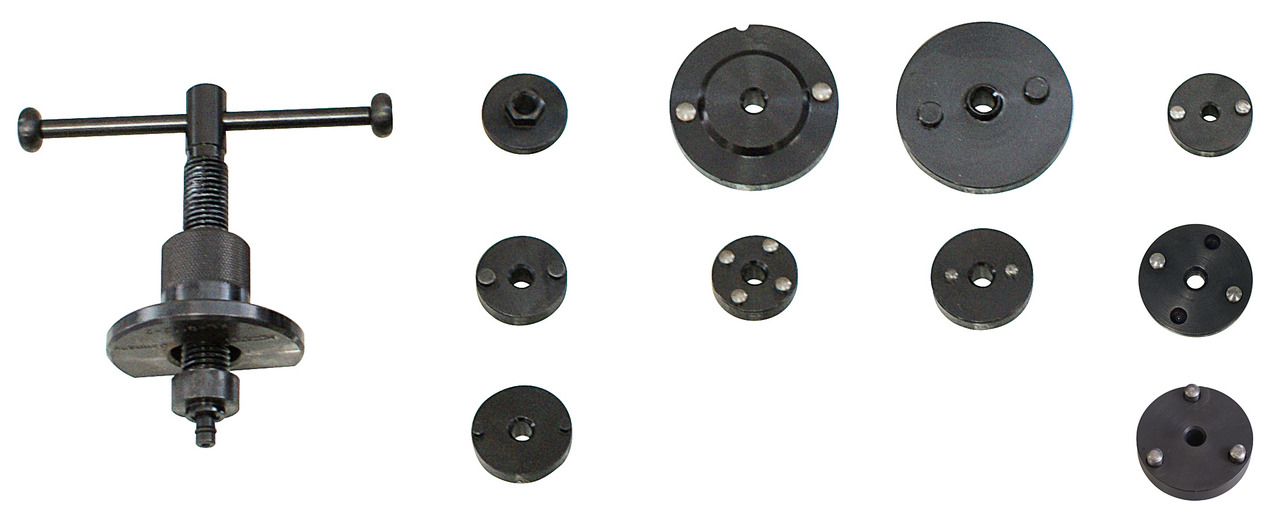

• Parts list (Text):

  1x KL-0112-2000 - Druck-/Drehvorrichtung Grundgerät

  1x KL-0112-0005 - Adapter Gr. 2

  1x KL-0112-0007 - Adapter Gr. 1

  1x KL-0112-0006 - Adapter (12 mm Inbus)

  1x KL-0112-0008 - Adapter Gr. 8

  1x KL-0112-0009 - Adapter Gr. 9

  1x KL-0112-0010 - Adapter Gr. 10

  1x KL-0112-0013 - Adapter Gr. 13

  1x KL-0112-0015 - Adapter Gr. 15

  1x KL-0112-0016 - Adapter Gr. 16

  1x KL-0112-0017 - Adapter Gr. 17

  1x KL-0112-2290 - Kunststoffkoffer

• OEM: 3272|KM-6007-B|T20055A
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with, for example, VW-Audi, BMW, Citroën, Fiat, Ford, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Seat, Škoda, Subaru, Toyota, etc.
• Clamping width (min.): 15 mm
• Clamping width (max.): 78 mm
• Quantity adapters: 10
• Storage: in a case
