Pull Spindle, M16, with Quick-Action Clamping Nut
Ready for shipment in 6 workdays
- Item number:
- WS03602915677
- Manufacturer number:
- KL-0039-2116
- Weight:
- 1.22 kg

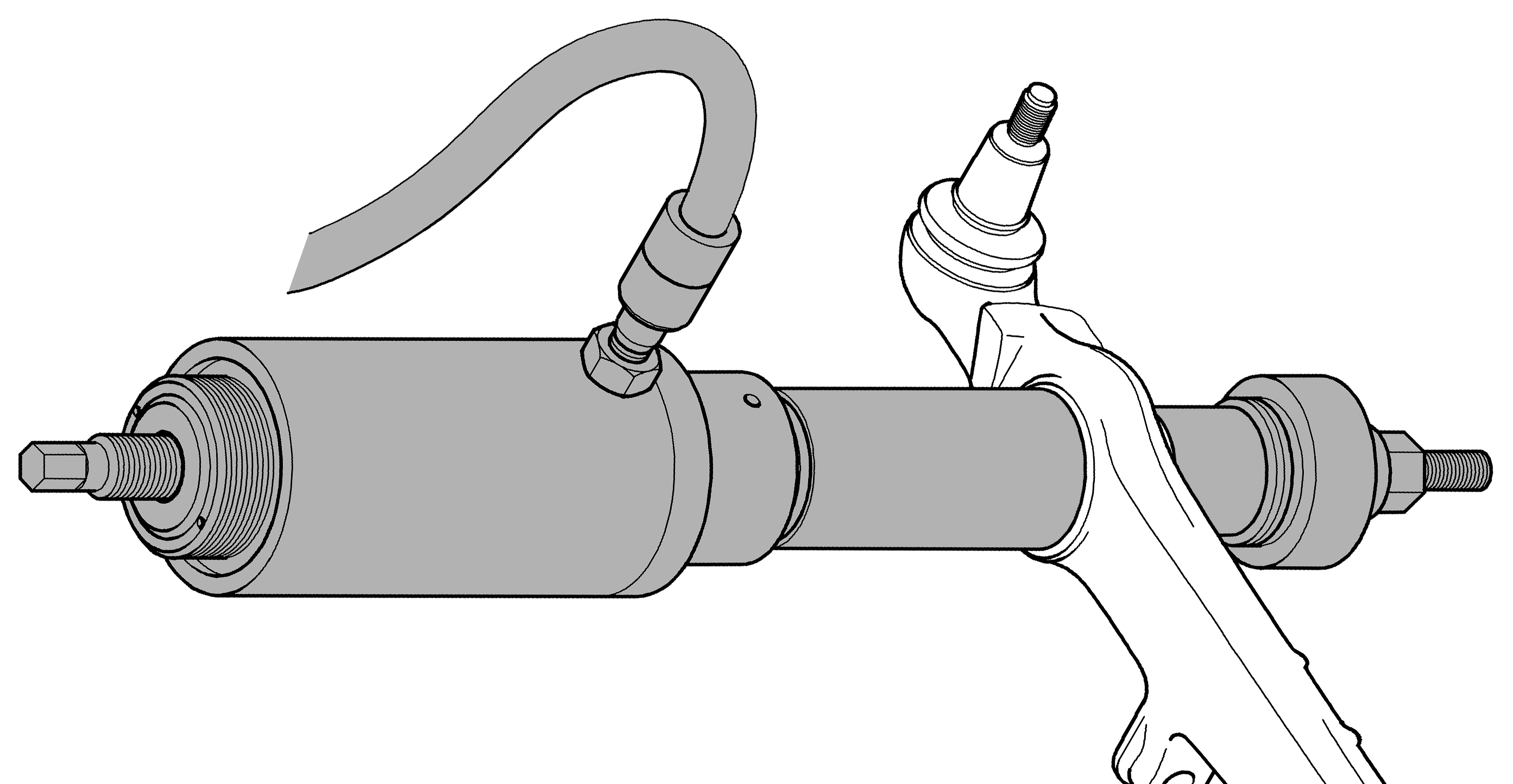

The pull spindle with quick-action clamping nut is used in conjunction with the tools of the KL-0039-.. Series and the KL-0040-2500 hydraulic cylinder (17t) to allow bearings, bushings, joints etc. to be removed and installed hydraulically. Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement. This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool., For removing and installing bearings, bushings, etc., Thanks to its special design, the quick-action clamping nut can be adjusted simply by sliding it on the pull spindle without any rotational movement., This allows for short assembly/clamping times as well as quick and easy adjustment and simple operation of the tool., To prevent the quick-release nut from opening under load, secure it by the collar together with a suitable pressure/support sleeve, an adapter, or a retaining ring.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 2
- Net weight: 1,2 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-0039-2116-2 - Schnellspannmutter M16
1x KL-0039-1916-1 - Zugspindel M16
- Target groups: Automotive Construction and commercial vehicles Agriculture
- Spindle Thread length (usable): 210 mm
- Thread dimension: M16
- Thread size 2: M20
- Drive hexagon: 13,0 mm
- Spindle total length: 590 mm
- Drive type: hydraulic
- Load (max.): 13 t
- Spindle thread length (usable) 2: 300 mm
