Fixing Tool Kit, VW Assembly Carrier
Ready for shipment in 6 workdays
- Item number:
- WS03602968355
- Manufacturer number:
- KL-0220-10 K
- Weight:
- 0.6 kg
Fixing Tool Kit, VW Assembly Carrier

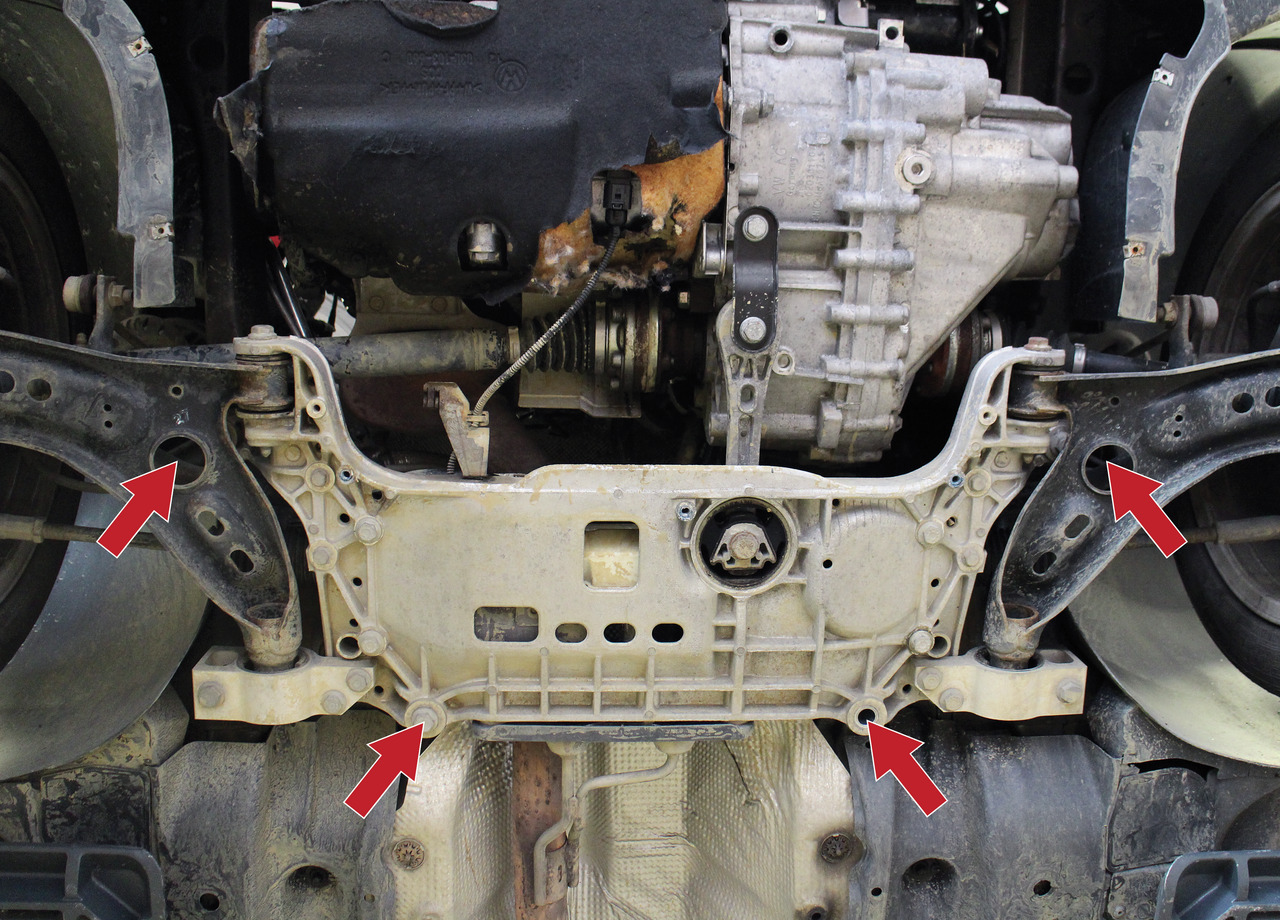

The tools allow for the professional installation/adjustment of assembly carriers (with fastening screws having an M12x1.5 or M14x1.5 thread). Necessary after maintenance work/repairs where the assembly carrier has been loosened/released, for example, after the replacement of silentblocs, wishbone etc., Necessary after maintenance work/repairs where the assembly carrier has been loosened/released, for example, after the replacement of silentblocs, wishbone etc.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 8
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
4x KL-0220-101 - Fixierbolzen M12x1,5
4x KL-0220-102 - Fixierbolzen M14x1,5
1x KL-0220-1090 - Kunststoffkoffer
- OEM: T10227|T10096
- Total length: 50 mm
- Target groups: Automotive
- Suitable for: Compatible with engine carriers in VW-Audi, Seat, and Škoda. Installed, for example, in Audi A3 (8P), A4 (8E, 8H), TT (8J); VW EOS (1F), Fox (5Z), Golf Plus (5M), Golf V (1K), Jetta (1K), Passat (3C), Passat CC (357), Polo (9N), Scirocco (137), T5 (7J, 7H, 7E, 7F), Touareg (7C), Touran (1T, 9R); Seat Alhambra (71), Altea (5P), Altea XL (5P), Ibiza (6J), Ibiza / Córdoba (6L), Leon (1P), León (5F), Toledo (5P), Toledo (KG3).
- Thread dimension: M12x1,5
- Thread size 2: M14x1,5
- Drive hexagon: 6 mm
- Tightening torque (max.): 20 Nm
