Wheel Bearing Installation Tool, Ø 85mm
Ready for shipment in 6 workdays
- Item number:
- WS03603445828
- Manufacturer number:
- KL-0041-452 C
- Weight:
- 7.87 kg
Wheel Bearing Installation Tool, Ø 85mm
For quick and professional removal and installation of wheel bearing units directly on the vehicle., The particular construction of the tool particularly enables the removal and installation of wheel bearing units without centre bore., Thereby the wheel bearing is directly pulled out via the wheel hub and pressed in again damage-free via the outer ring of the wheel bearing.
Features:
- Country of origin: Germany
- Customs tariff number: 82055980
- Contents (Qty of pieces): 7
- Net weight: 7,8 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text):
1x KL-0041-4500 B - Spannbackenpaar, Ø 85 / 92 mm
1x KL-0041-4607 - Gehäuse
1x KL-0041-4608 D - Deckel
1x KL-0039-1289 - Druckring, Ø 89 mm
1x KL-0039-1802 - Zentrierhülse, lang, Ø 27,4 mm
1x KL-0041-4521 - Abziehplatte mit Schraube
- Target groups: Automotive Construction and commercial vehicles

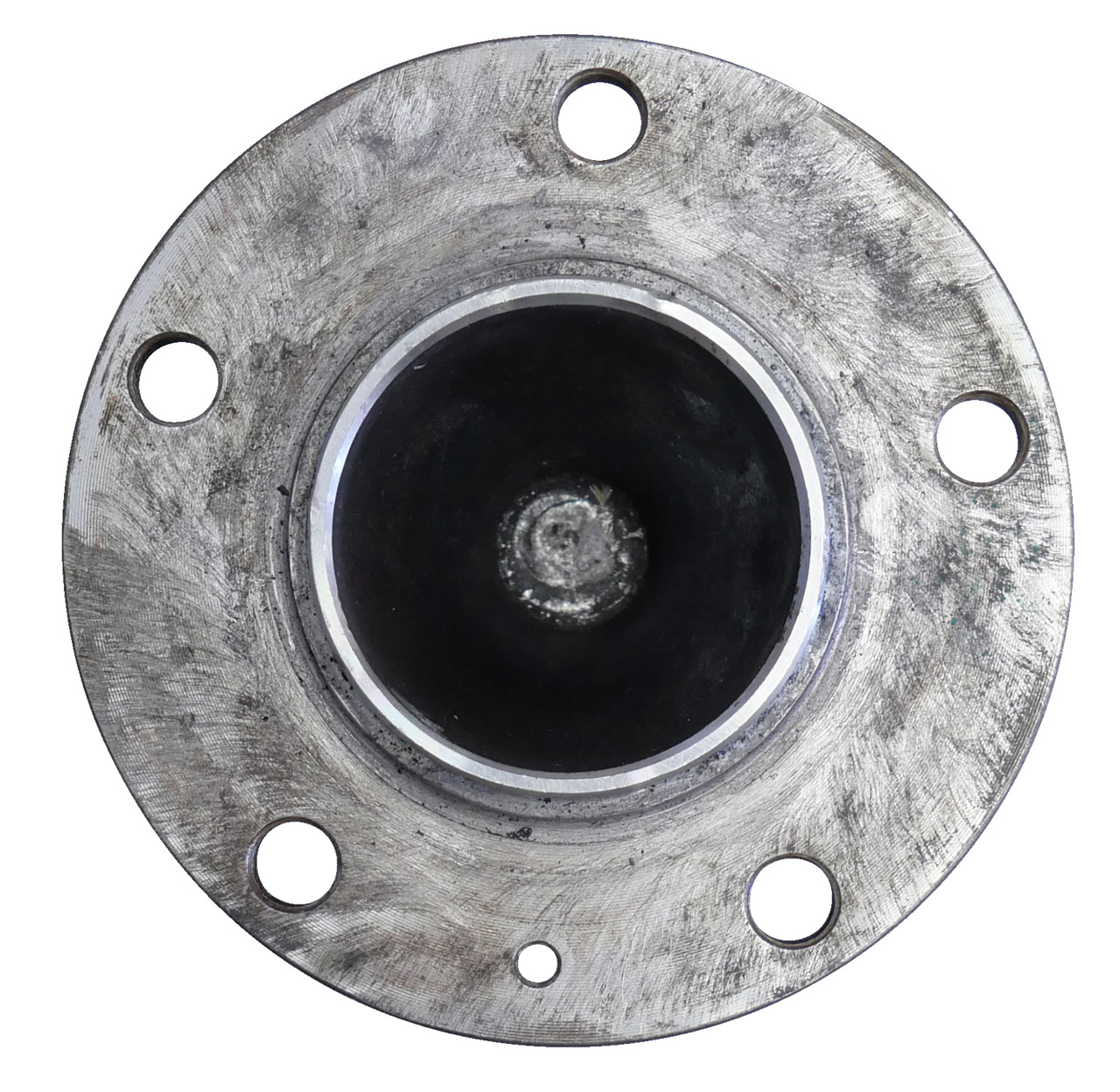

- Suitable for: Compatible with wheel bearing units without center bore, such as on rear axles with a wheel bearing diameter of 92 mm, in Toyota ProAce; Peugeot Expert, Traveller; Citroën Jumpy / Dispatch, Spacetourer; Opel Zafira Life; Fiat Scudo III, Ulysse III, and many more. Also compatible with conventional wheel bearing units and bolt circle diameters of 5x108, 5x112 mm.
- Required accessories: Hydraulic drive (17 t): KL-0041-3800 A - Wheel hub extractor KL-0214-2202 – Spacer ring KL-0039-1920-1 A – Pull spindle M20 KL-0039-2120-2 – Quick-clamping nut M20 KL-0040-2500 – Hydraulic cylinder 17t KL-0215-35 M25 – Hand pump 17t
- Drive type: hydraulic
- Load (max.): 17 t
- Wheel stud circles: 5x108 mm / 5x112 mm
- For outer diameter (bearing): 92 mm
