Item number:
WS03601400177
Manufacturer number:
QSN 900 FH
Weight:
0.467 kg

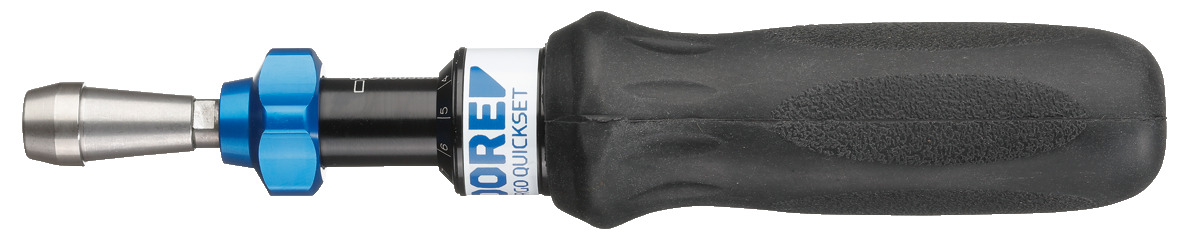

Torque screwdriver S 1/4" 4-9 Nm

Use: Controlled screw tightening in the range of 4 - 9 Nm, High-speed, controlled tightening enables serial production, Electrical and electronic hardware industry, instrument-making industry and industrial manufacturing or in quality control, Features: Adjustable torque screwdriver - with scale, With 1/4" female hexagon drive for use with 1/4" hexagon bits as per DIN 3126 - C 6.3, With adaptor also suitable for 1/4" square drive sockets as per DIN 3124, Working accuracy: +/- 6 % tolerance of set torque, Acc. to DIN EN ISO 6789, traceable to national standards, Precision radial ball clutch and cam design for controlled bi-directional tightening, Precision mechanism slips very noticeably when the pre-set value is achieved, Automatic resetting to the starting position, "Positive-Lock" system automatically fixes the set value preventing it from wrong setting, 4 models in the range 0,08 Nm to 9 Nm, Micrometre scale graduation: 1 cNm resp. 0,1 Nm, EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications, Scope of delivery: Torque screwdriver type QSN, 1/4" square/hexagon drive adaptor (No. 757-20), Model No. QSN 600 FH / QSN 900 FH with additional T-handle for easier work, Test certificate acc. to DIN EN ISO 6789, Delivery in sturdy cardboard packaging

Features:

  • Country of origin: England
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total height: 38 mm
  • Net weight: 0,335 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 196 mm
  • Target groups: Automotive Electronics industry Industry Precision mechanics Military Service
  • Drive connector hexagon: 6,3 mm
  • Range of application: Assembly Production Quality control Series assembly Maintenance and repair
  • Torque (max.): 9 Nm
  • Drive type/drive: Bitholder
  • Torque (min.): 4 Nm
  • Scale type: Mono
  • Precision +/-: +/- 6 %
  • Tightening direction: Left and right
  • Fixed setting: No
  • Test certificate: DIN EN ISO 6789-2:2017
  • Torque range (min./max.): 4 Nm - 9 Nm
  • Epa-/Esd-Model: Yes
  • Trigger mechanism: Friction clutch
  • Cross-handle available: No
