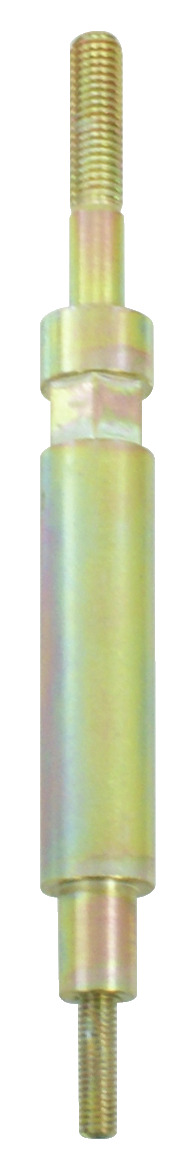

Set of Support bolts M6, 145mm

The KL-0186-1233 support bolt set upgrades the universal injector nozzle puller set KL-0186-14 K by making it also suitable for use on the above-mentioned engines.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 8
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  4x KL-0186-1233-11 - Stützbolzen 145 mm

  4x KL-0186-1235-2 - Gewindestift M6 x 25 mm

• Total length: 145 mm
• Target groups: Automotive
• Suitable for: Suitable for diesel engines in VW-Audi, Seat, Škoda 2.0 TDI; Opel & Chevrolet 2.0 + 2.2 CDTi/VCDi; Mercedes 1.8 + 2.1 CDI; Ford 2.2 TDCI; and Peugeot, Citroën, Fiat, PSA 2.2 HDI. Installed, for example, in VW Golf VI (5K), Eos (1F), Sharan (7N), Passat V (3C), Passat VI (36), Jetta (16), Passat CC (35), Tiguan (5N); Audi A3 (8P), Q3 (8U); Seat Alhambra (71); Škoda Superb II (3T); Opel Antara; Chevrolet Cruze (J300), Captiva, Orlando (J309), Nubira, Lacetti; Mercedes C-Class (W204 / S204 from 2007), E-Class (W212 from 2009), E-Class Coupe / Cabriolet (W207 / C207 from 2009), GLK (X204 from 2008), and Sprinter II (906 from 2006); Ford Transit (from 2006), Tourneo; Fiat Ducato (from 2006 to 2012); Citroën Relay/Jumper III; Peugeot Boxer III.
• Required accessories: KL-0186-14 EA - Injector extractor kit, if necessary supplementary kit (injector) - KL-0186-128.. required.
• for motor type: Diesel
• Drive type: hydraulic mechanical
• Mounting thread: M6
• Distance range: 101 mm
• Length assembled: 155 mm
• Length (exchange pin): 25 mm
