Locking Tool Set, Ford

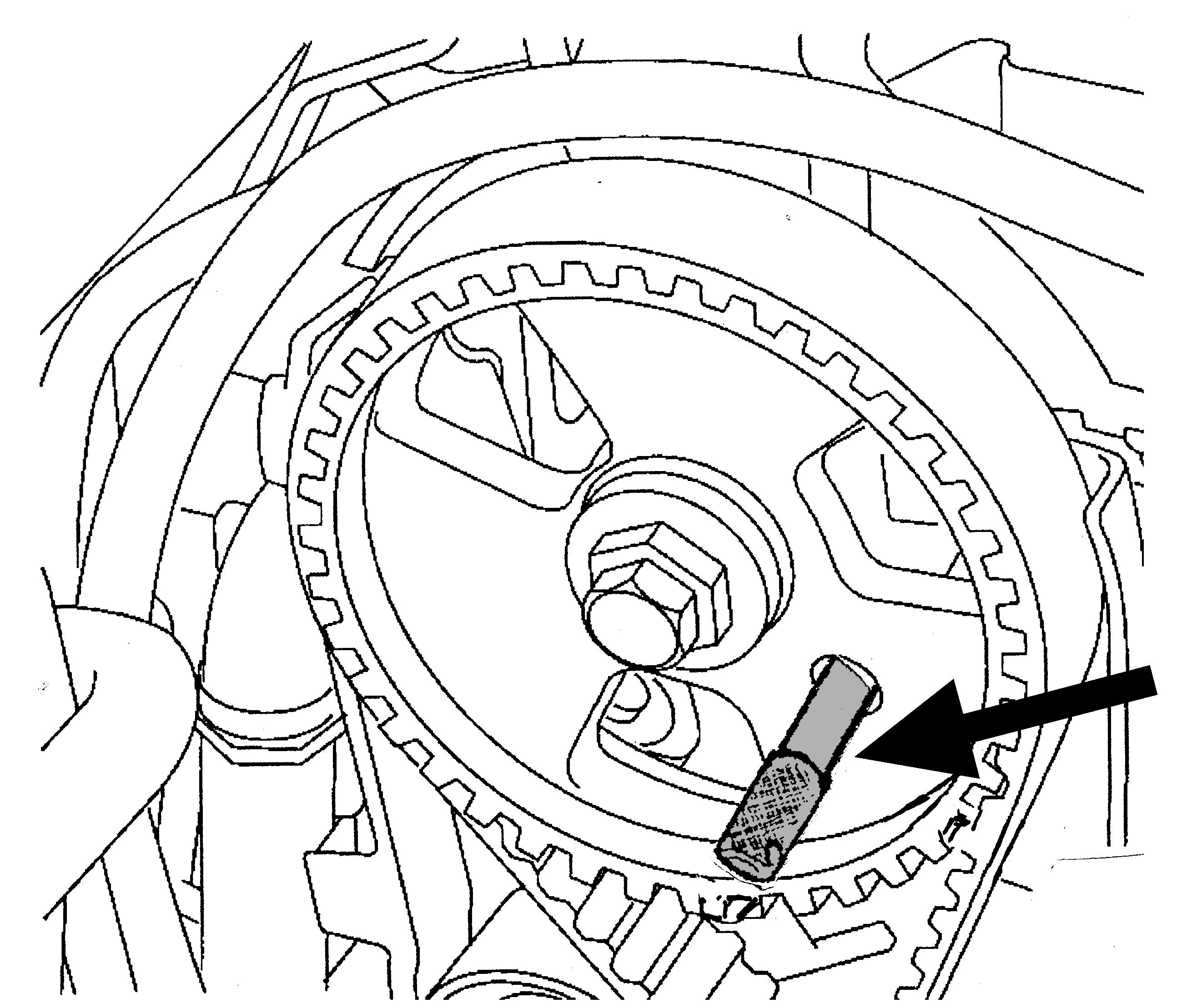

This tool set is designed for the locking/positioning of engine shafts such as camshaft, crankshaft and injection pump shaft as well as of the timing belt tensioner. Essential tools when replacing a timing belt or performing an engine repair. Scope of Delivery: KL-0180-30 B Retaining Pin Set, 0.8 - 1.9mm. For locking the automatic timing belt tensioner when replacing a timing belt. Consists of: Key fob with ring and 6 retaining pins with Ø 0.8mm, Ø 1.2mm, Ø 1.4mm, Ø 1.5mm, Ø 1.7mm, Ø 1.9mm. KL-0680-10 Locking Pin, Ø 6mm, for crankshaft. Suitable for 1.8 D/TD/Tddi/TDCi Diesel engines. Engine codes: BHDA/B, BHPA, C9DA/B/C, F9DA/B, HCPA, KKDA, RFA, RFK, RFL, RFN, RTC, RTJ, RTK. KL-0680-1058 A Locking Tool for Flywheel, with Adaptor, 1.8 Diesel. Suitable for the 1.6 TDI and 1.8 D/TD/TDCI Diesel engines. Engine codes: RTN, RTQ, RTP, BHDB, BHPA, C9DA, C9DB, C9DC, F9DA, F9DB, FFBA, FFDA, FFWA, G6DA, G6DB, G6DC, HPCA, HPCB, P7PA, P9PA, QYBA, QYWA, R2PA, R3PA, RWPA, KKDA. KL-0680-11 A Locking Pin, Ø 8.3mm, for camshaft. Suitable for 2.5 D/TD/TCI Diesel engines. Engine codes: 4EB, 4EC, 4ED, 4FA, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4HB, 4HC. KL-0680-12 A Locking Pin, Ø 9.5mm, for injection pump. Suitable for 1.8 D/TD and 2.5 DI/Turbo/TCI Diesel engines. Engine codes: 4EB, 4EC, 4ED, 4FA, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4HB, 4HC, RFD, RFK, RFN, RKD, RTC, RTH, RTJ, RTK, RVA. KL-0680-13 A Locking Pin, Ø 12.9mm, for flywheel. Suitable for 2.5 DI/Turbo/TCI Diesel engines. Engine code: 4EB, 4EC, 4ED, 4FA, 4FB, 4FC, 4FD, 4GA, 4GB, 4GC, 4GD, 4GE, 4HB, 4HC. KL-0680-14 A Locking Pin, Ø 6mm, for camshaft and injection pump. Suitable for 1.8 D/TD Diesel engines. Engine codes: C9DC, RFA, RFD, RFK, RFL, RFN, RTB, RTC, RTH, RTJ, RTK. KL-0680-15 A Setting Gauge for Camshafts. Suitable for TwinCam petrol engines 1.25, 1.4, 1.6, 1.7, 1.8, 2.0 and 1.8 D/TD Diesel engines. Engine codes: C9DC, MHA, RFA, RFD, RFK, RFL, RFN, RTC, RTH, RTJ, RTK, Zetec DHA/DHB. KL-0680-16 Locking Pin, Ø 7.9mm, for crankshaft. Suitable for 1.6, 1.8, 2.0 16V petrol engines. Engine codes: L1F, L1J, NGA, RKA, RKB, Zetec. KL-0680-17 Locking Pin, Ø 5mm, for crankshaft. Suitable for 1.25, 1.4, 1.6, 1.7 16V petrol engines. Engine codes: Zetec DHA, DHB, DHC, DHD, DHE, DHF, DHG, FHA, FHE, L1T, L1V, MHA. KL-0680-18 Locking Pin, Ø 7.95mm, for crankshaft. Suitable for Ford petrol engines (1.25 Zetec-SE Sigma; 1.4 Duratec-16V Sigma; 1.6 Duratec-16V Sigma; 2.0 Duratec-RS Zetec; 1.4 Zetec-SE Sigma; 1.6 Zetec-SE Sigma; 2.0 Duratec-ST Zetec) Engine codes: F8JA, F8JB, FUJA, FXDA/C, FXDB/D, FXJA, FXJB, FYDA/C, FYDB/D, FYDH, FYJA, FYJB, HWDA, HXDA. KL-0680-2101 A Locking Pin, Ø 14mm, for flywheel. Suitable for Ford 2.0 and 2.4 16V TDCi engines. KL-0680-2102 A Locking Pin, Ø 13.5/9.5mm, for flywheel. Suitable for Ford 2.0 and 2.4 16V TDdi engines. KL-0680-2103 A Locking Pin, Ø 6mm, for camshafts and injection pump. Suitable for Ford 2.0 and 2.4 16V TDdi/TDCi engines. Engine codes: FMBA/B, D5BA, ABFA, D3FA, F3FA, D2FA, D4FA, F4FA. KL-0680-2201 A Locking Pin, Ø 11mm, for flywheel. Suitable for 1.4 and 1.6 HDi (PSA) and 1.4 and 1.6 TDCi (Ford) engines. Engine codes: 8HV, 8HW, 8HX, 9HX, 9HZ DV4TD, DV4TED4, DV6ATED4, DV6TED4 and F6JA, F6JB, F6JC, G8DA, G8DB, HHDA. KL-0680-2202 A Locking Pin, Ø 4.5mm, for crankshaft and injection pump. Application as KL-0680-2201 A. KL-0680-2203 B Locking Pin, Ø 8mm, for camshaft. Appliation as KL-0680-2201 A + 2.0 and 2.2. KL-0680-2501 A Adaptor, 2.0 TDCi, for KL-0680-1058 A. Engine codes: AZWA, G6DA, G6DB, G6DC, QXWA. KL-0680-2502 A Adaptor, 1.6 Ti-VCT, for KL-0680-1058 A. Engine code: HXDA. KL-0680-2890 Plastic Storage Case., An indispensable tool set when replacing a timing belt or performing an engine repair.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 29
• Total width: 395 mm
• Total height: 106 mm
• Total depth: 295 mm
• Net weight: 2,5 kg
• 1000 V insulated: No
• VDE certified: No

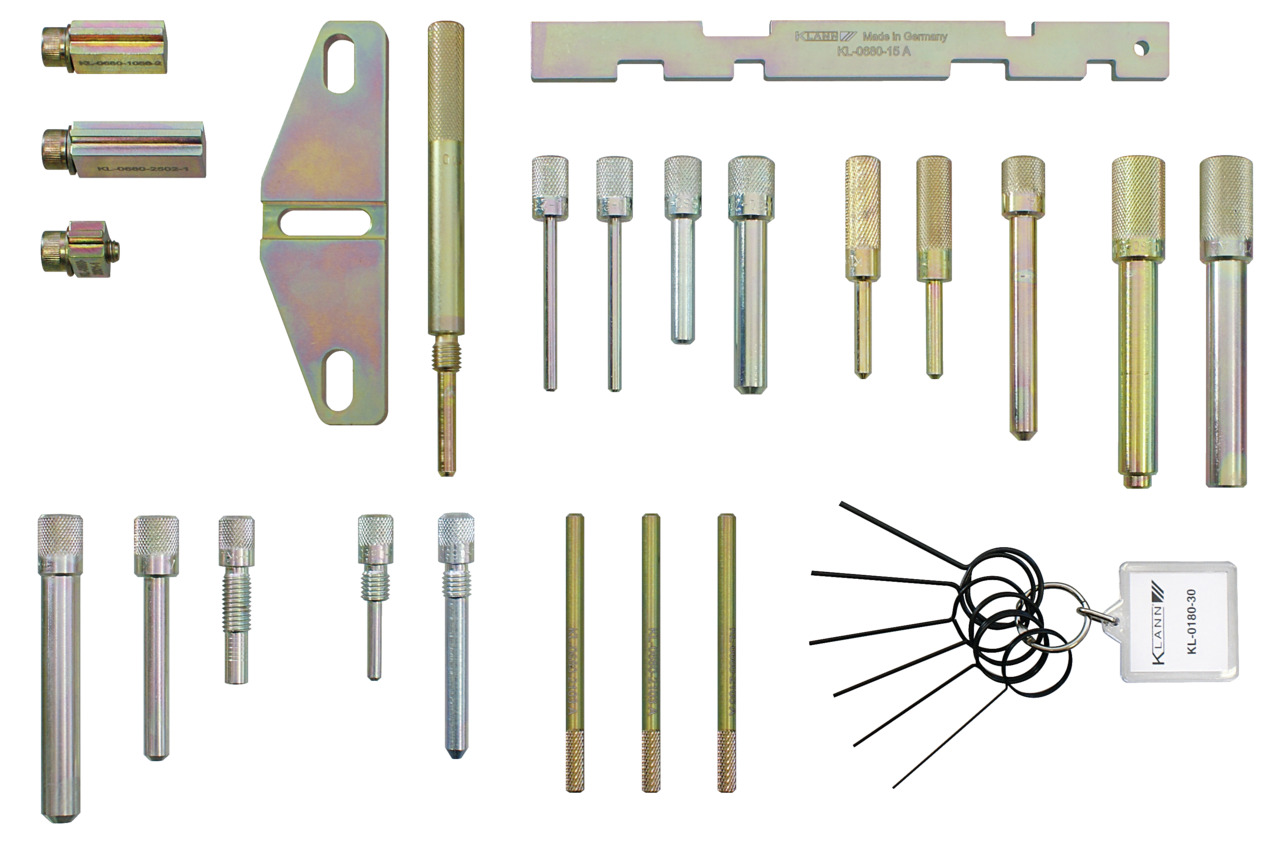

• Parts list (Text):

  1x KL-0180-30 B - Arretierstifte-Satz 0,8 mm - 2,6 mm

  1x KL-0680-10 - Arretierdorn Ø 6 mm, für Kurbelwelle

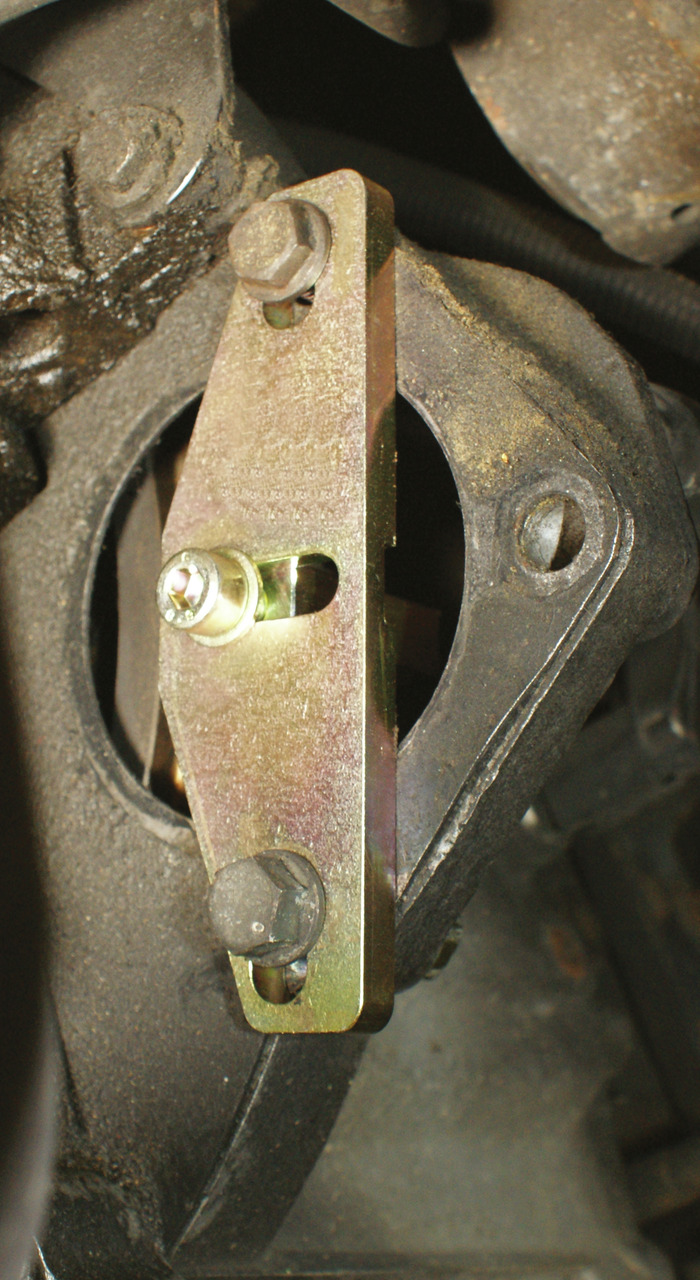

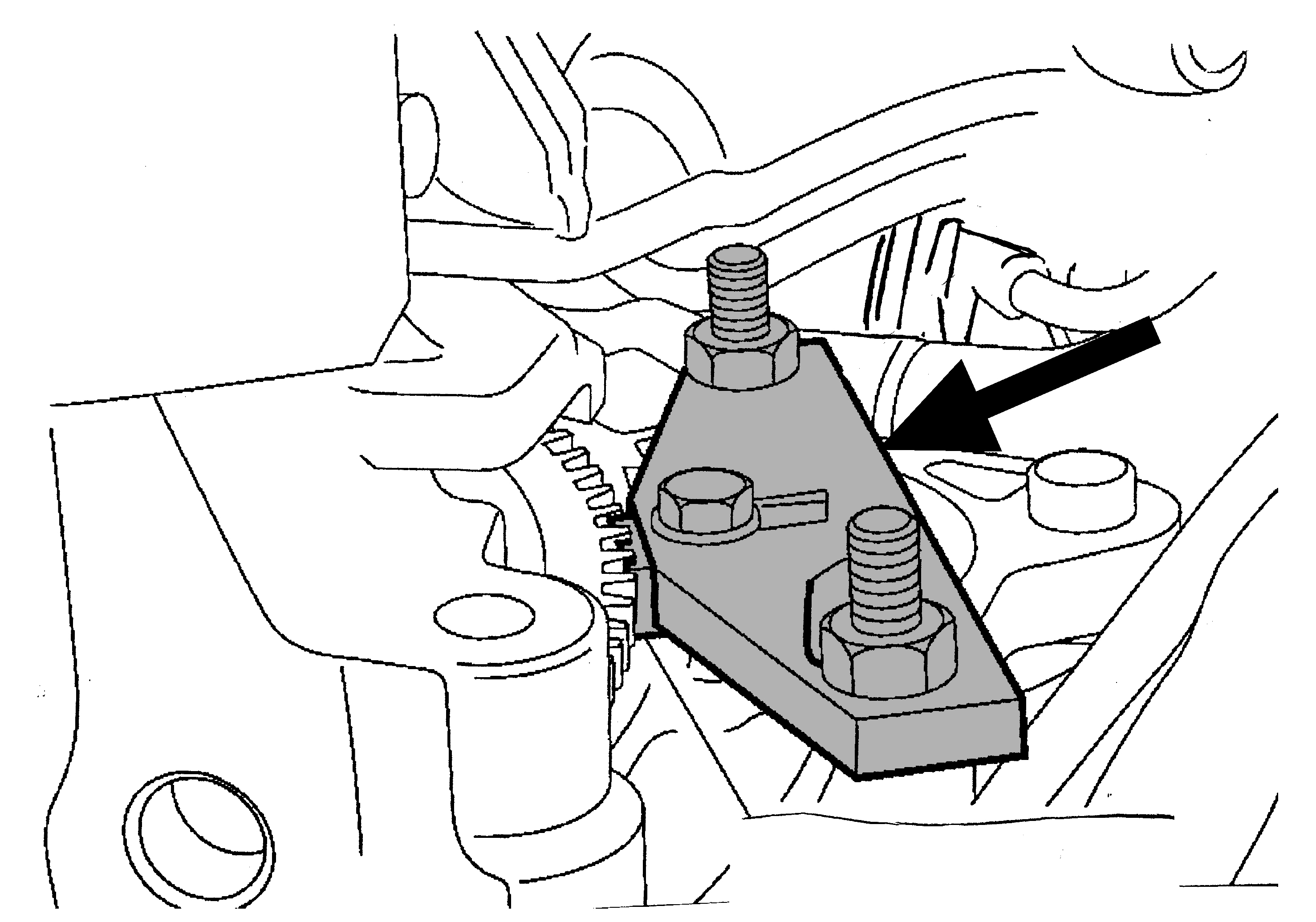

  1x KL-0680-1058 A - Haltevorrichtung für Schwungrad mit Adapter 1.6, 1.8 Diesel

  1x KL-0680-11 A - Arretierdorn Ø 8,3 mm, für Nockenwelle

  1x KL-0680-12 A - Arretierdorn Ø 9,5 mm, für Einspritzpumpe

  1x KL-0680-13 A - Arretierdorn Ø 12,9 mm, für Schwungrad

  1x KL-0680-14 A - Arretierdorn Ø 6 mm, für Nockenwelle und Einspritzpumpe (2 St.)

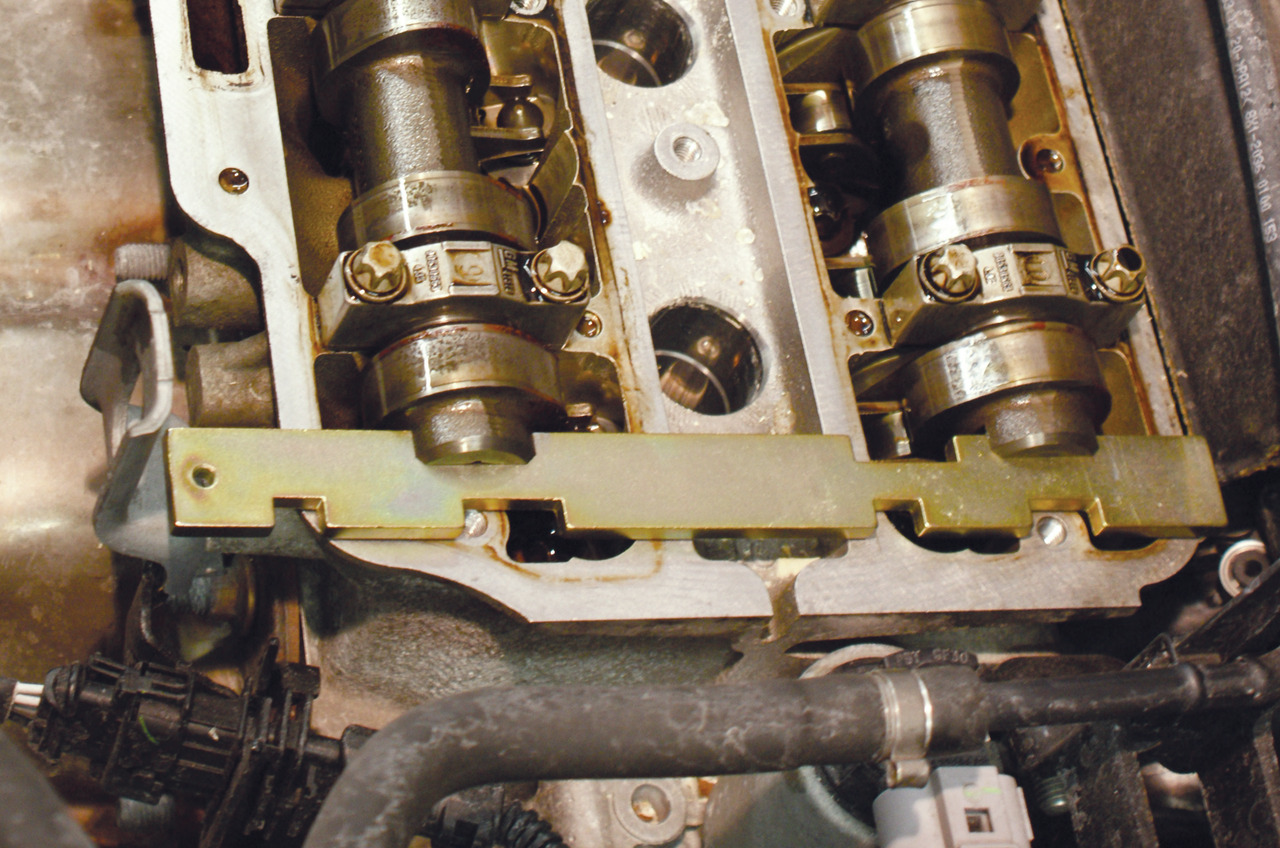

  1x KL-0680-15 A - Einstell-Lehre für Nockenwellen

  1x KL-0680-16 A - Arretierdorn Ø 7,9 mm, für Kurbelwelle

  1x KL-0680-17 - Arretierdorn Ø 5 mm, für Kurbelwelle

  1x KL-0680-18 - Arretierdorn Ø 7,95 mm für Kurbelwelle

  1x KL-0680-2101 A - Arretierdorn Ø 14 mm, für Schwungrad

  1x KL-0680-2102 A - Arretierdorn Ø 14 / 10 mm, für Schwungrad

  1x KL-0680-2103 A - Arretierdorn Ø 6 mm, für Nockenwellen und Einspritzpumpe (3 St.)

  1x KL-0680-2201 A - Arretierdorn Ø 11 mm, für Schwungrad

  1x KL-0680-2202 A - Arretierdorn Ø 4,5 mm, für Kurbelwelle und Einspritzpumpe (2 St.)

  1x KL-0680-2203 B - Arretierdorn Ø 8 mm, für Nockenwelle

  1x KL-0680-2501 A - Adapter 2.0 TDCi für KL-0680-1058 A

  1x KL-0680-2502 A - Adapter 1.6 Ti-VCT für KL-0680-1058 A

  1x KL-0680-2890 - Kunststoffkoffer

• OEM: 23-019|23-020|23-029|303-193|303-367|303-376 |303-376 B|303-393|303-393 A|303-393-01|303-393-02|303-465|303-507|303-574|303-620|303-675|303-681|303-681-01|303-698|303-732|303-734|303-735|303-748|310-018|310-019|310-033|49 JE01 050|21-260|49 JE01 054|49 JE01 061|21-263|49 JE01 063|49 JE02 018|49 JE02 020|49 JE02 021|49 JE02 024|49 JE02 061|49 N010 101|49 UN30 3376|995-208|303-235|21-104|21-123|21-162|JE01 054|21-162 B|JE01 061|21-163|21-168|21-168 A|21-210|21-234|21-251|21-259|21-262
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with Ford, PSA (Citroën, Peugeot), Land Rover, Jaguar, Mazda, Volvo 1.4, 1.6 HDi (PSA) and 1.4, 1.6 TDCi (Ford) and 1.6 TDi, 1.8 TDi / TDdi / TDCi, 2.0, 2.4 16V TDdi / TDCi diesel engines. E.g., Citroën Berlingo, C1, C2, C3, C4, C5, DS3, DS4, Jumpy / Dispatch, Nemo, Xsara; Fiat Scudo; Ford C-Max, Cougar, Courier, Escort, Fiesta, Focus, Fusion, Galaxy, Kuga, Maverick, Mondeo, Orion, S-Max, Tourneo, Transit; Jaguar X-Type, Land Rover Defender; LDV Convoy; Mazda 2, 3, 323, 5, 6, E-Series, MPV, MX-5, Premacy, Tribute, Xedos 9; Peugeot 107, 206, 207, 307, 308, 407, 508, 1007, 3008, 5008, Bipper, Expert, Partner; Volvo C30, S40, S60, S80, V50, V70.
• for motor type: Diesel
• Storage: in a case
