TorcoTronic III 1/2" 10-120 Nm Highline

TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline
TorcoTronic III 1/2" 10-120 Nm Highline

Ready for shipment in 6 workdays

Item number:
WS03602648636
Manufacturer number:
TT3KH 120
Weight:
1.74 kg
TorcoTronic III 1/2" 10-120 Nm Highline

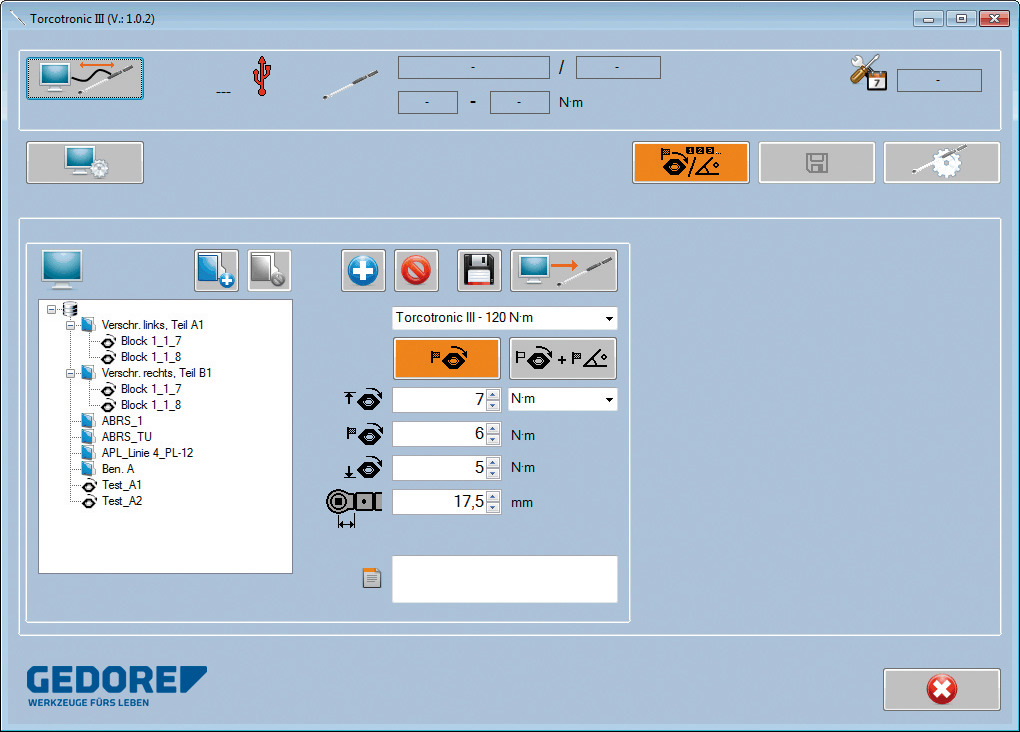

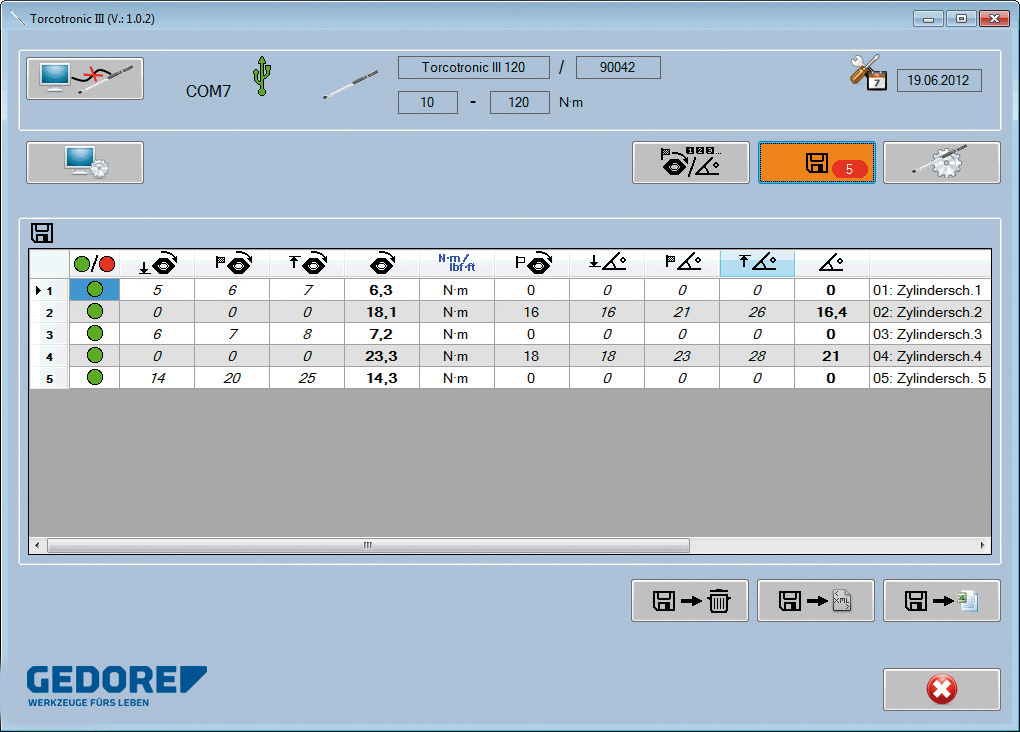

Use: For everyday requirements in installation and torque control, For use in all areas of manufacturing and development, 2 models in the range from 10 to 350 Nm, Microprocessor-controlled, electronic torque wrench, For controlled bi-directional tightening, Acc. to DIN EN ISO 6789, traceable to national standards, Robust workshop construction, Wide measuring range in Nm, can be switched to cNm, lbf·ft or lbf·in, With 1/2" reversible ratchet. The ratchet is exchangeable, providing the option of using a 9x12 mm (TT3H 120) or 14x18 mm (TT3H 350) square socket, Characteristics: Torque and torque angle measure, 4 different measuring modes, 5 parameters storable, USB interface for data exchange, 2000 storage places, Measurement accuracy torque +/- 1 %, +/- 1 digit, Measurement accuracy torque angle +/- 1 %, but min. +/- 1° on 360° with min. 4°/sec, Different depth gauges for end fittings programmable, Simple to operate with easy to understand Icon-menu navigation and 4 functional keys, Clearly readable, illuminated LCD display, Resolution torque: 0.1 Nm, Resolution torque angle: 0.1°, PC-software easy to operate for uncomplicated programming and documentation of data, Data can be transfered to MS Excel®, Keyboard lock, Operation with standard Mignon AA or optional with rechargeable-battery (NiMH), Visual signal: 3x LED (yellow, green, red), Acoustic signal: buzzer, TÜV SÜD approved, CE and RoHS

Features:

  • Country of origin: Germany
  • Customs tariff number: 90318080
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 39 mm
  • Total height: 31,5 mm
  • Net weight: 1,2 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Parts list (Text): Quadropak, USB-Kabel, AA-Batterien, Einsteckknarre ½“, Bedienungsanleitung, Software
  • Total length: 670 mm
  • Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Railway Agriculture Oil & Gas
  • Square drive: 1/2"
  • Range of application: Assembly Series assembly Production Quality control Maintenance and repair
  • Torque (max.): 120 Nm
  • Drive type/drive: Rectangular cavity
  • Torque (min.): 10 Nm
  • Precision +/-: +/- 1 %
  • Tightening direction: Left and right
  • Fixed setting: No
  • Torque range (min./max.): 10 Nm - 120 Nm
  • Epa-/Esd-Model: No
  • Measurement accuracy: ± 1% tolerance of the reading value, ± 1 digit
  • Interface: USB
  • Measuring accuracy angle of rotation: ±1%, min. ±1° over 360°, at least 4°/sec.
  • Graphic display: No
  • Evaluation software: No
  • Drive connector rectangular: 9 x 12 mm
  • Power source: Battery
  • Chemical properties: Alkaline
  • Category at Take e Way: Rub. 2022 Primary Alkali 16-30g
  • Type of battery: LR6 (AA)
  • Are there any disposal instructions in the operating instructions?: No
  • Are there any disposal instructions on the battery?: No
  • Disposal instructions on tools: No
