Reaction Wrench Set

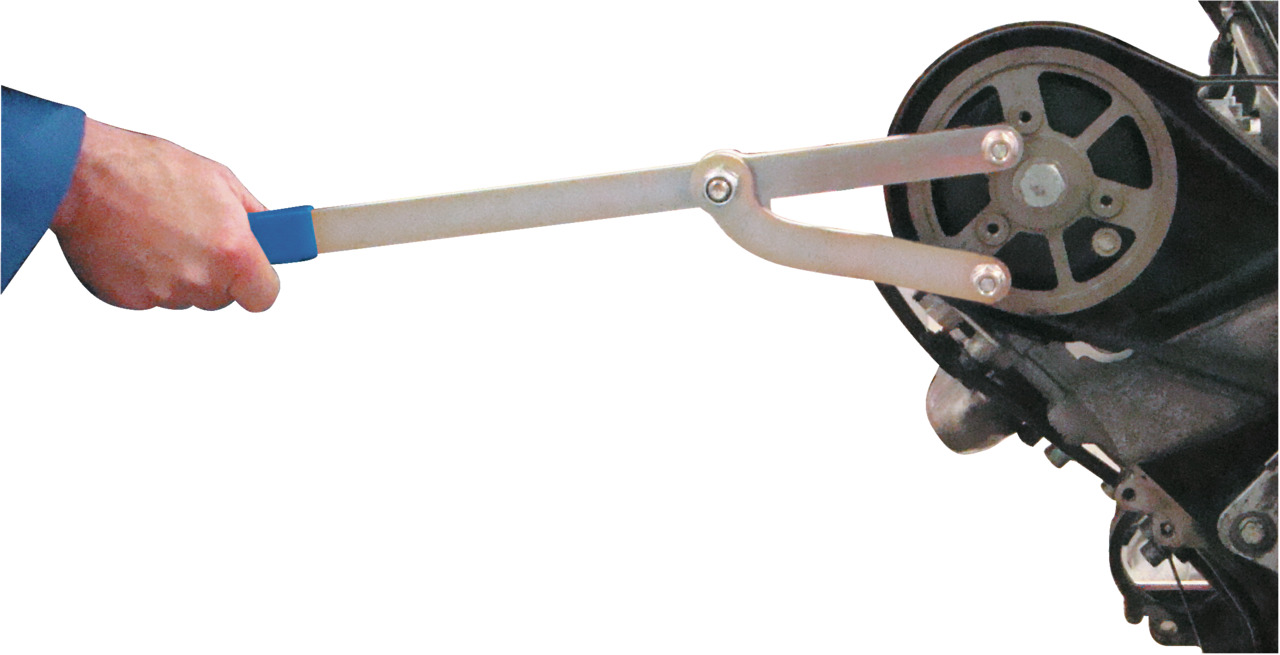

For professional counter-holding of toothed belts and timing chain sprockets, with or without camshaft adjustment, which have at least two bores larger than 6.5 mm diameter, or which are provided with M6 mounting threads., Required, for example, when loosening and tightening the fastening screws on the camshaft, balancer shaft, intermediate shaft, and injection pump shaft., Depending on the hole diameter and spacing, the counter-hold spanner can be individually adapted thanks to the large number of interchangeable bolts and knurled screws as well as the infinitely adjustable holder.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 13
• Net weight: 1,6 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0282-35 - Gegenhalteschlüssel verstellbar

  1x KL-0282-311 - Bolzen-Satz Ø 18 mm

  1x KL-0282-312 - Bolzen-Satz Ø 7,5 mm

  1x KL-0282-313 - Bolzen-Satz Ø 6 mm

  1x KL-0282-314 - Rändelschrauben-Satz M6

  1x KL-4990-2001 - Kunststoffdose

• OEM: T20018B/3|T30004|3036|MP-1-216|EN-47634|EN-49979|KM-6245|KM-6347|0606-A1|0606-A1Y|0606-A2|6016-T|6310-T|1.860.831.000|1.860.831.001|1.860.831.002|1.860.885.000|1.870.836.000|Mot.799|Mot.799-01|09917-68221|15-030 A|205-072|18G 1521|49 D011 102|49 G011 103|49 S120 710|MD998747|T10554|T10172|T10172/1|T10172/2|T10172/4|T10172A|T20018|T20018A|T20018B|T20018B/1|T20018B/2
• Total length: 470 mm
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with perforated timing belt and timing chain pulleys, with or without variable valve timing. Installed in vehicles such as VW-Audi, Seat, Škoda, Alfa, BMW, Fiat, Lancia, Dacia, Mercedes, MG, Nissan, Ford, Opel, Porsche, Peugeot, Renault, Citroën, Rover, Volvo, Suzuki, Isuzu, Japanese vehicles, and many more.
• for motor type: Petrol Diesel
• Version: adjustable
• Pin width/diameter: 6 mm / 7,5 mm / 12 mm / 18 mm
• Wheel stud circles: 14 - 130 mm
• Thread size, knurled screw: M8x1,25
