Flat ring ratchet spanner 12x13 mm
Ready for shipment in 6 workdays
- Item number:
- WS03602306786
- Manufacturer number:
- 4 R 12X13
- Weight:
- 0.09 kg
Flat ring ratchet spanner 12x13 mm
Flat pattern, Thin walled rings, UD profile, Return angle 7° to 14x15 mm, 6° 16x17 mm to 18x19 mm, For ratchet loosening and fast tightening, Vanadium steel 31CrV3, Non-glare look due to matt chrome-plating, locking insert and pawl manganese-phosphated, Hot forged, Proven GEDORE technology newly combined: Waisted shaft of the No. 7 and the further developed mechanism of the U-20 ratchets, In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Net weight: 0,09 kg
- 1000 V insulated: No
- VDE certified: No

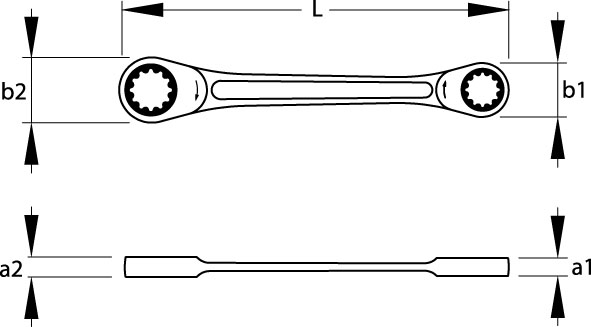

- Total length: 174,5 mm
- Material: 31CrV3
- Width of head 1: 23,6 mm
- Version: Flat design, with thin-walled rings
- Surface: chrome-plated
- Width across flats 1: 12 mm
- Width across flats 2: 13 mm
- Head height 1: 8,6 mm
- Width across flats [mm]: 12 x 13 mm
- Return angle: 7 °
- Width of head 2: 25,7 mm
- Head height 2: 9 mm
