Ready for shipment in 6 workdays

Item number:
WS03602102781
Manufacturer number:
KL-0500-405
Weight:
0.883 kg

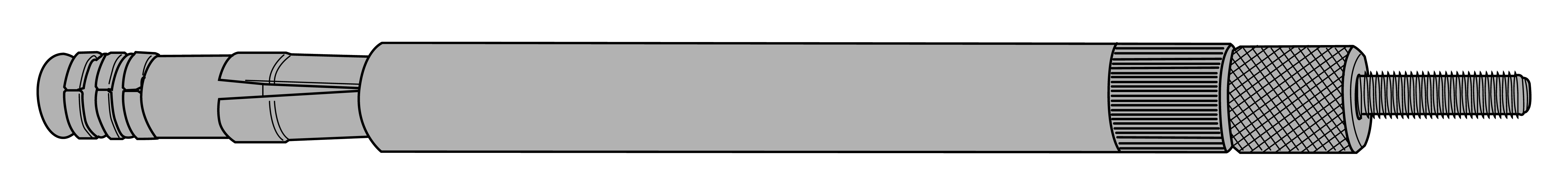

Clutch-centring Pin (double acting)

The newly developed clutch aligner KL-0500-405 enables clutch discs to be centred also on vehicles that do not feature a pilot bearing in the crankshaft. The two clamping-/centring elements ensure, on the first clamping element (Ø 15 - 28mm) the accurate centring in the clutch disc, and on the second element (Ø 12 - 28mm) the accurate centring in the pilot bearing, respectively the crankshaft bore. Even clutches on engines with the crankshaft bore Ø larger than the clutch disc hub Ø can be aligned neatly and accurately thanks to this tool., The two clamping / centring elements ensure precise centring in the clutch disc on the first clamping element (Ø 15 - 28 mm), and precise centring in the guide bearing or crankshaft hole on the second clamping element (Ø 12 - 28 mm)., Even clutches on engines with the crankshaft bore Ø larger than the clutch disc hub Ø can be aligned neatly and accurately thanks to this tool.

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Contents (Qty of pieces): 15
  • 1000 V insulated: No
  • VDE certified: No
  • Parts list (Text):

    1x KL-0500-4050 - Führungsrohr komplett

    1x KL-0500-4057-1 - Zentrierdorn Ø 12 mm

    1x KL-0500-4057-2 - Zentrierdorn Ø 14 mm

    1x KL-0500-4057-3 - Zentrierdorn Ø 15 mm

    1x KL-0069-0006 - Spannkonus Gr. 2, 22 mm

    1x KL-0500-4055 - Konusaufsatz

    1x KL-0500-4054 - Spannsegmentsatz Ø 20 mm

    1x KL-0500-4056-2 - Schiebbarer Konus Ø 15 mm, 40 mm lang

    1x KL-0500-4056-3 - Schiebbarer Konus Ø 15 mm, 67 mm lang

    1x KL-0500-4056-4 - Schiebbarer Konus Ø 15 mm, 75 mm lang

    1x KL-0500-4056-5 - Schiebbarer Konus Ø 18 mm, 67 mm lang

    1x KL-0500-4056-6 - Schiebbarer Konus Ø 18 mm, 75 mm lang

  • Target groups: Automotive Construction and commercial vehicles
  • Suitable for: Suitable for SAC clutches. Especially required for vehicles without guide bearing in the crankshaft.
  • Length basic tool: 375 mm
  • Clamping range (max.): 28 mm
  • Clamping range (min.): 15 mm
