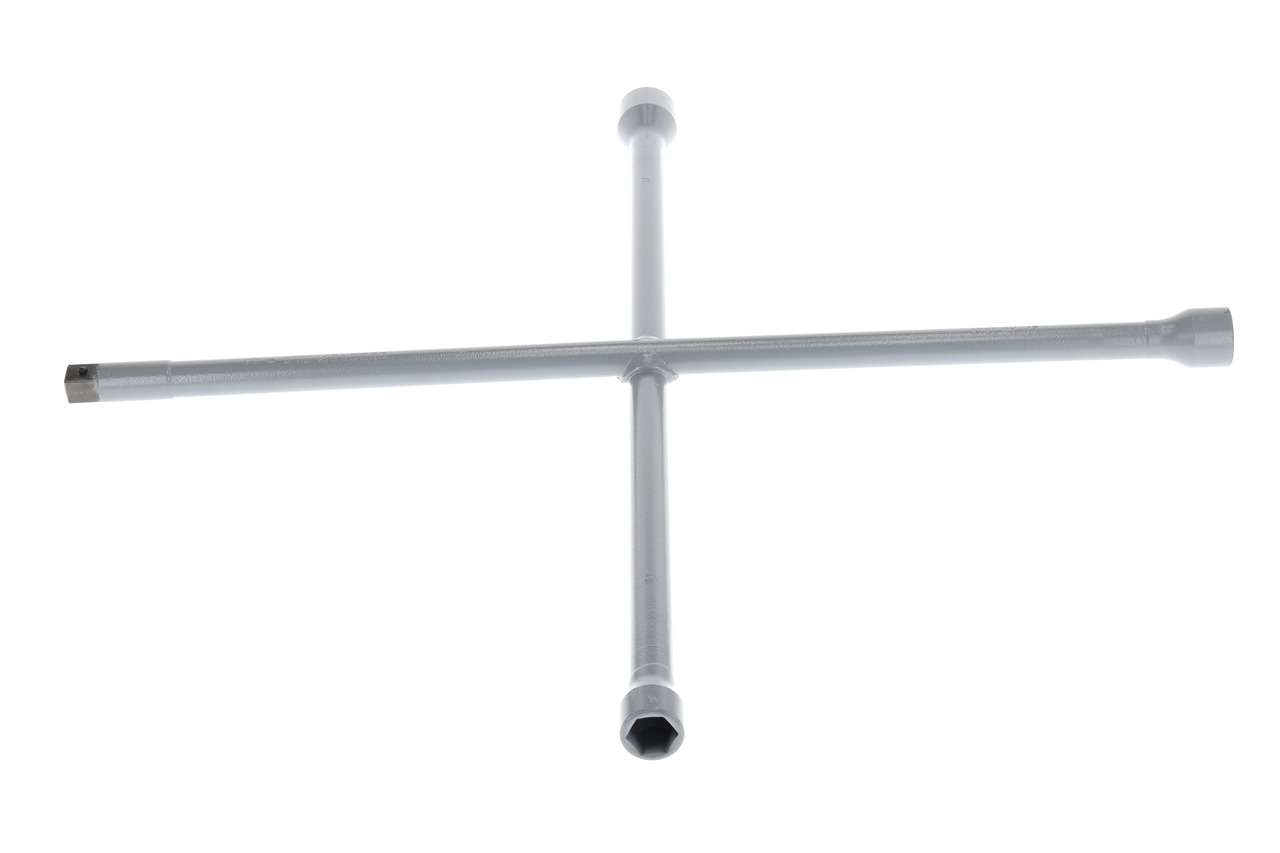

4-way wheel wrench 24x32x27x3/4" sq.dr.
Ready for shipment in 6 workdays
- Item number:
- WS03606229150
- Manufacturer number:
- 28 LV
- Weight:
- 5.515 kg
4-way wheel wrench 24x32x27x3/4" sq.dr.
Acc. to DIN 3119, ISO 6788, For trucks, agricultural machines, tractors and industrial uses, Vanadium steel 31CrV3, Grey powder-coated, Hot forged hexagon, The collar, typical of GEDORE 4-way wheel wrenches, enlarges the welding area, The positive-fit joint remains solid even under extreme loading, Dimensions: 750 x 750 mm
Features:
- Country of origin: Germany
- Customs tariff number: 82041100
- Reach: compliant
- Contents (Qty of pieces): 1
- Total width: 750 mm
- Total height: 46 mm
- Net weight: 5,515 kg
- 1000 V insulated: No
- VDE certified: No
- Parts list (Text): 24x32x27x3/4" 4kt
- Total length: 755 mm
- Use: For trucks, agricultural machines, tractors and industrial uses
- Material: 31CrV3
- Surface: grey powder-coated
- Width across flats 1: 24 mm
- Width across flats 2: 27 mm
- Width across flats [mm]: 24 x 27 x 32 mm
- Square drive: 3/4"
- Insert-Ø 1: 34,5 mm
- Insert-Ø 2: 45,0 mm
- Width Across Flat 3: 32 mm
- Insert-Ø 3: 38,5 mm
- Insert-Ø 4: 26,0 mm
- Insert-Ø: 34,5 mm x 45,0 mm x 38,5 mm x 26,0 mm
- Width across flats 4: 3/4
