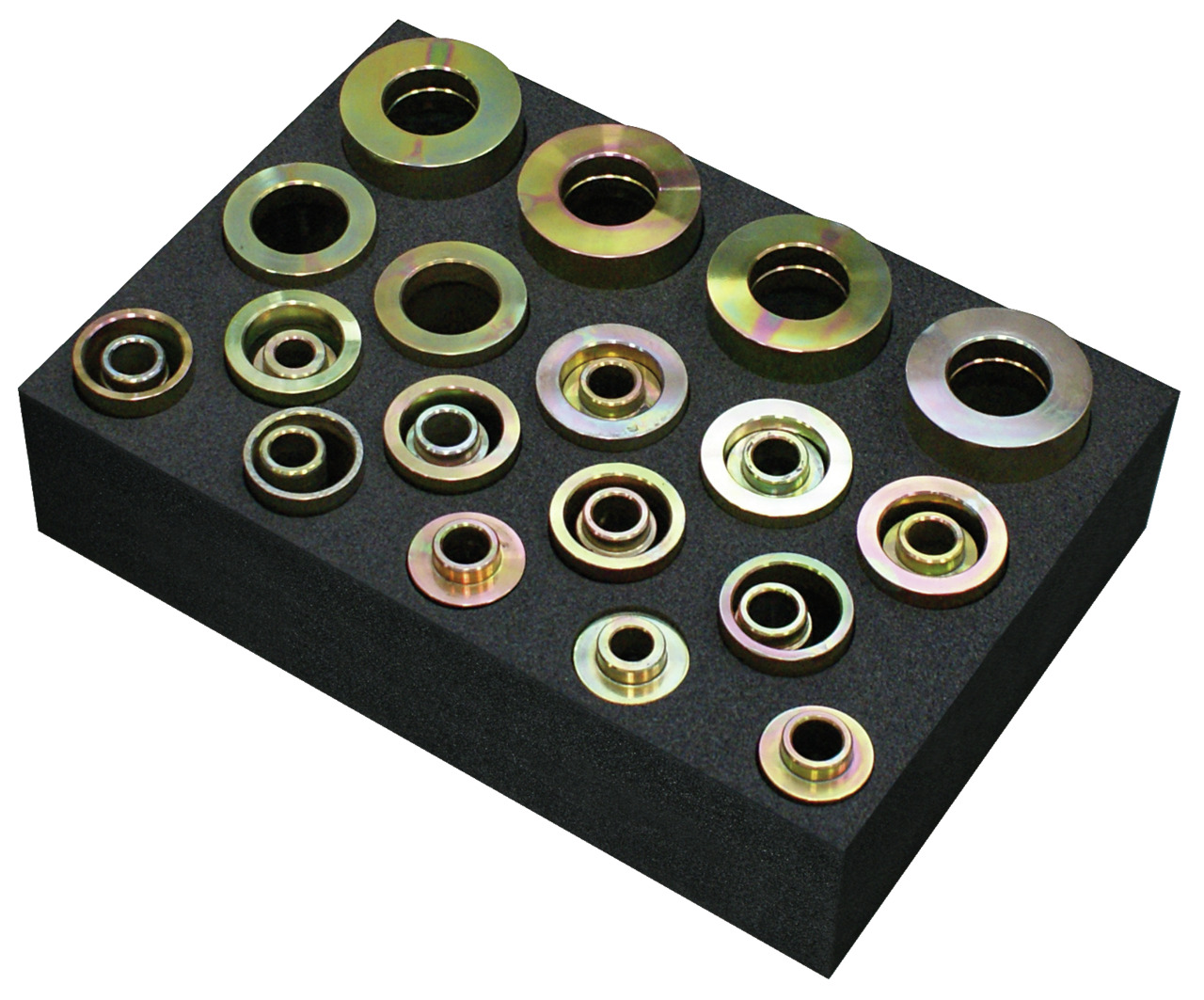

Pressure/Support Sleeve Set, Ø 30-90 mm, long,

Indispensable tool set for pressing in and pressing out silentblocs, shafts, bushings etc. The sleeves are used in conjunction with the tools of the KL-0039-.. Series.

Features:

  • Country of origin: Germany
  • Customs tariff number: 82055980
  • Contents (Qty of pieces): 31
  • Total width: 445 mm
  • Total height: 120 mm
  • Total depth: 305 mm
  • Net weight: 25,5 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Parts list (Text):

    1x KL-0039-1730 - Druck-/Stützhülse lang Ø 30 / 22 mm

    1x KL-0039-1732 - Druck-/Stützhülse lang Ø 32 / 24 mm

    1x KL-0039-1734 - Druck-/Stützhülse lang Ø 34 / 26 mm

    1x KL-0039-1736 - Druck-/Stützhülse lang Ø 36 / 28 mm

    1x KL-0039-1738 - Druck-/Stützhülse lang Ø 38 / 30 mm

    1x KL-0039-1740 - Druck-/Stützhülse lang Ø 40 / 32 mm

    1x KL-0039-1742 - Druck-/Stützhülse lang Ø 42 / 34 mm

    1x KL-0039-1744 - Druck-/Stützhülse lang Ø 44 / 36 mm

    1x KL-0039-1746 - Druck-/Stützhülse lang Ø 46 / 38 mm

    1x KL-0039-1748 - Druck-/Stützhülse lang Ø 48 / 40 mm

    1x KL-0039-1750 - Druck-/Stützhülse lang Ø 50 / 42 mm

    1x KL-0039-1752 - Druck-/Stützhülse lang Ø 52 / 44 mm

    1x KL-0039-1754 - Druck-/Stützhülse lang Ø 54 / 46 mm

    1x KL-0039-1756 - Druck-/Stützhülse lang Ø 56 / 48 mm

    1x KL-0039-1758 - Druck-/Stützhülse lang Ø 58 / 50 mm

    1x KL-0039-1760 - Druck-/Stützhülse lang Ø 60 / 52 mm

    1x KL-0039-1762 - Druck-/Stützhülse lang Ø 62 / 54 mm

    1x KL-0039-1764 - Druck-/Stützhülse lang Ø 64 / 56 mm

    1x KL-0039-1766 - Druck-/Stützhülse lang Ø 66 / 58 mm

    1x KL-0039-1768 - Druck-/Stützhülse lang Ø 68 / 60 mm

    1x KL-0039-1770 - Druck-/Stützhülse lang Ø 70 / 62 mm

    1x KL-0039-1772 - Druck-/Stützhülse lang Ø 72 / 64 mm

    1x KL-0039-1774 - Druck-/Stützhülse lang Ø 74 / 66 mm

    1x KL-0039-1776 - Druck-/Stützhülse lang Ø 76 / 68 mm

    1x KL-0039-1778 - Druck-/Stützhülse lang Ø 78 / 70 mm

    1x KL-0039-1780 - Druck-/Stützhülse lang Ø 80 / 72 mm

    1x KL-0039-1782 - Druck-/Stützhülse lang Ø 82 / 74 mm

    1x KL-0039-1784 - Druck-/Stützhülse lang Ø 84 / 76 mm

    1x KL-0039-1786 - Druck-/Stützhülse lang Ø 86 / 78 mm

    1x KL-0039-1788 - Druck-/Stützhülse lang Ø 88 / 80 mm

    1x KL-0039-1790 - Druck-/Stützhülse lang Ø 90 / 82 mm

    1x KL-4999-1311 - Schaumstoffeinlage

  • Target groups: Automotive Construction and commercial vehicles Agriculture
  • Required accessories: Hydraulic drive (17 t):
  • Version: long
  • Storage: in a foam insert
  • Drive type: hydraulic mechanical
  • Length (sleeve): 115 mm
  • Outer diameter, sleeve (min.): 30 mm
  • Outer diameter, sleeve (max.): 90 mm
  • Inner diameter, sleeve (min.): 22 mm
  • Inner diameter, sleeve (max.): 82 mm
  • Diameter graduation: 2 mm
