TORCOFIX FS SE 14x18 40-200 Nm not preset

TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset
TORCOFIX FS SE 14x18 40-200 Nm not preset

Ready for shipment in 6 workdays

Item number:
WS03603288285
Manufacturer number:
TF-FS200
Weight:
0.95 kg

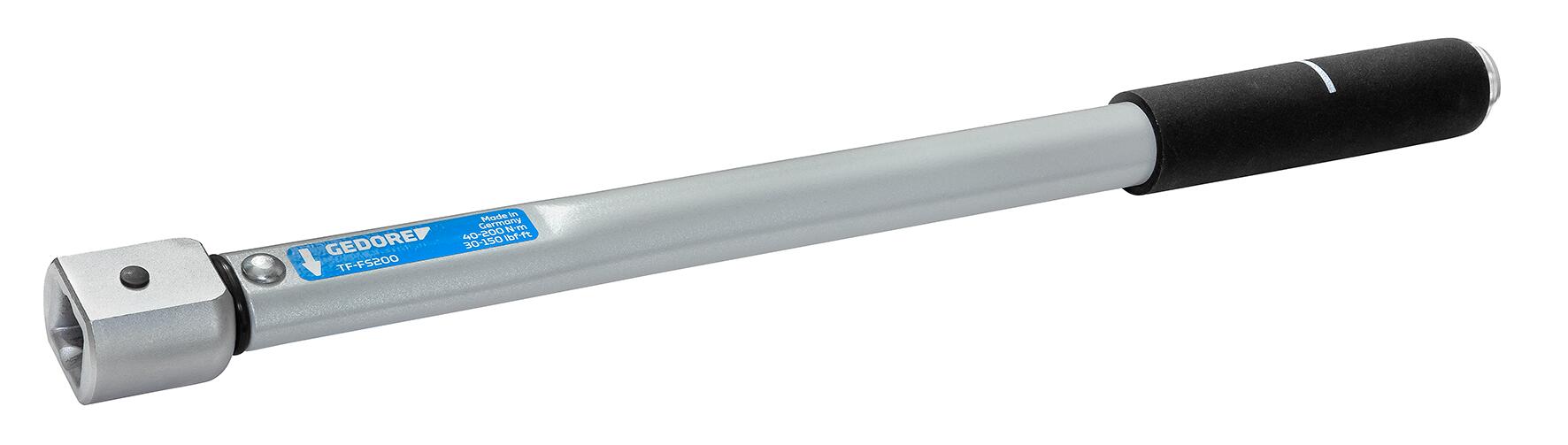

TORCOFIX FS SE 14x18 40-200 Nm not preset

For controlled right- and left-hand tightening (insert tool for change of direction), Incl. traceable test certificate (DIN EN ISO 6789-2:2017)

Features:

  • Country of origin: Germany
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 33 mm
  • Total height: 25 mm
  • Net weight: 0,75 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 410 mm
  • Material: lacquered tubular steel construction, with galvanized rectangular support
  • Target groups: Automotive Industry Military Energy Mechanical engineering Utilities
  • Range of application: Assembly Series assembly Production
  • Torque (max.): 200 Nm
  • Torque (min.): 40 Nm
  • Scale type: without
  • Precision +/-: +/- 3 %
  • Tightening direction: Left and right
  • Fixed setting: Yes
  • Test certificate: DIN EN ISO 6789-2:2017
  • Torque range (min./max.): 40 Nm - 200 Nm
  • Trigger mechanism: Short path triggering
  • Drive connector rectangular: 14 x 18 mm
  • Safety: Catch lock
  • Depth gauge: 25,0 mm
  • Storage/Content: Plastic Storage Box
  • Calibration length: 345,5 mm
