Counter-Holding Tool, VW

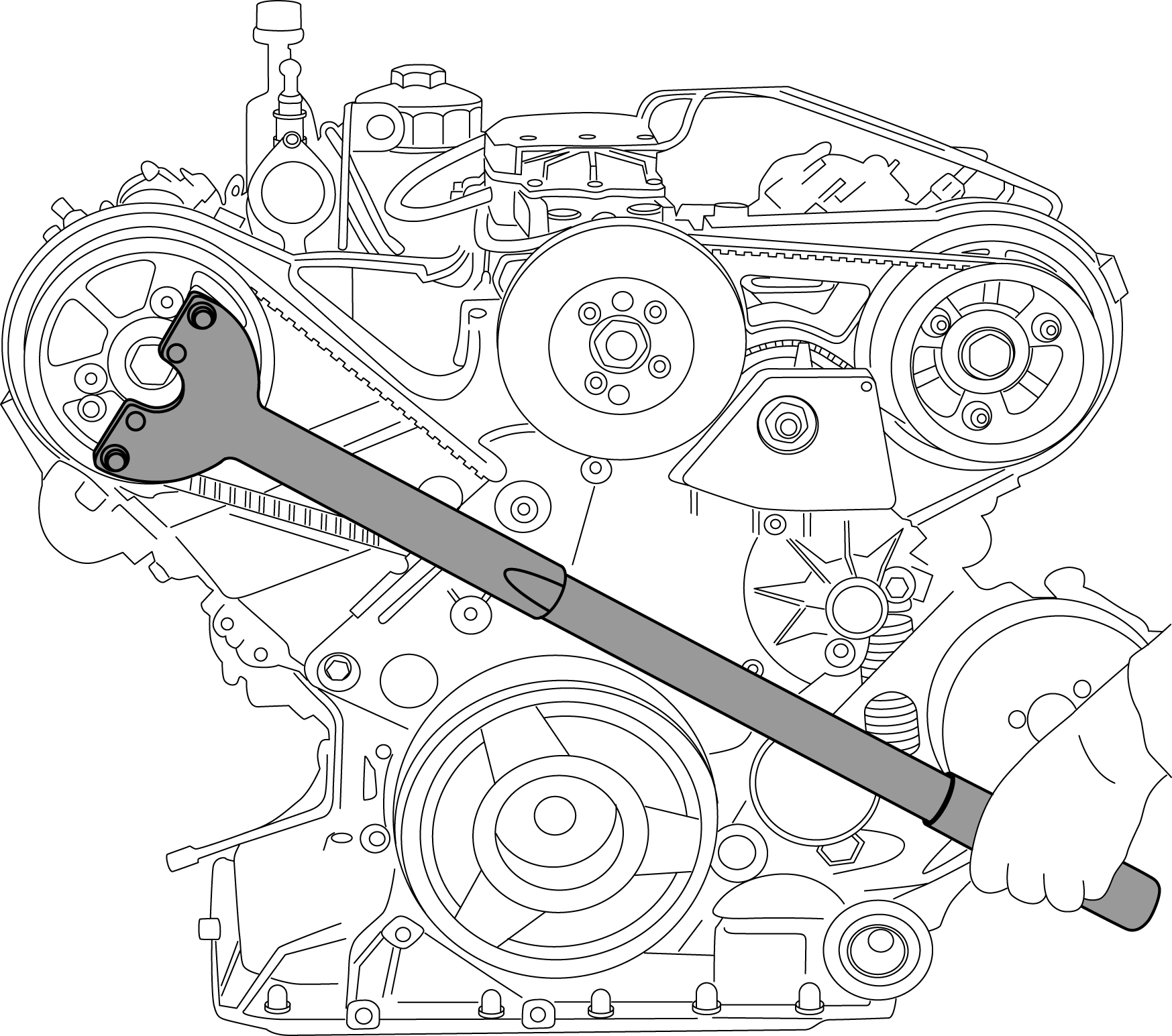

This tool is designed to counter-hold pulleys, timing belt sprockets etc. It is required when loosening/tightening the fastening screw. The locking takes place either via the pins (Ø 11.5mm) which engage the holes of the pulleys/timing belt sprockets, or by fixing the reaction wrench to the crankshaft timing belt sprocket by means of the M8 bolt. Thanks to its special length of 704mm, this tool allows even very tight-fitting or stubborn fastening screws to be loosened with ease., It is required when loosening/tightening the fastening screw., The locking takes place either via the pins (Ø 11.5mm) which engage the holes of the pulleys/timing belt sprockets, or by fixing the reaction wrench to the crankshaft timing belt sprocket by means of the M8 bolt., Thanks to its special length of 704mm, this tool allows even very tight-fitting or stubborn fastening screws to be loosened with ease.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 3
• Net weight: 2,5 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0184-0220 - Gegenhalteschlüssel, Grundwerkzeug mit Bolzen

  1x KL-0184-0101 - Verlängerungsrohr mit Schutzgriff

  1x KL-0184-0103 - Federklappbolzen

• OEM: 3415|3415/1|3415/2|T30004|T30004/1
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible. Especially suitable for VW-Audi, Seat, and Škoda 1.2, 1.4, and 1.6 petrol engines, and Škoda 1.9 SDI diesel engines. Installed in VW Beetle, Bora, Caddy/Caddy Maxi, Eos, Fox, Golf, Golf Plus, Golf VI Cabrio, Jetta, Lupo, Passat, Polo, Scirocco, Sharan, Tiguan, Touran; Audi A1, A2, A3, A3 Cabrio; Seat Alhambra, Altea/Altea XL, Arosa, Cordoba, Ibiza, Inca, Leon, Toledo; Škoda Fabia, Fabia II, Octavia II, Octavia/Octavia Tour, Praktik, Roomster, Superb II, Yeti.
• for motor type: Petrol Diesel
• Pin width/diameter: 11,5 mm
• Length assembled: 704 mm
• Pin spacing: 99,5 mm
• Pin height: 31,5 mm
• Length basic tool: 351 mm
• Length of extension tube with protection handle: 403 mm
