Wheel Bearing Tool Kit Vito/Viano

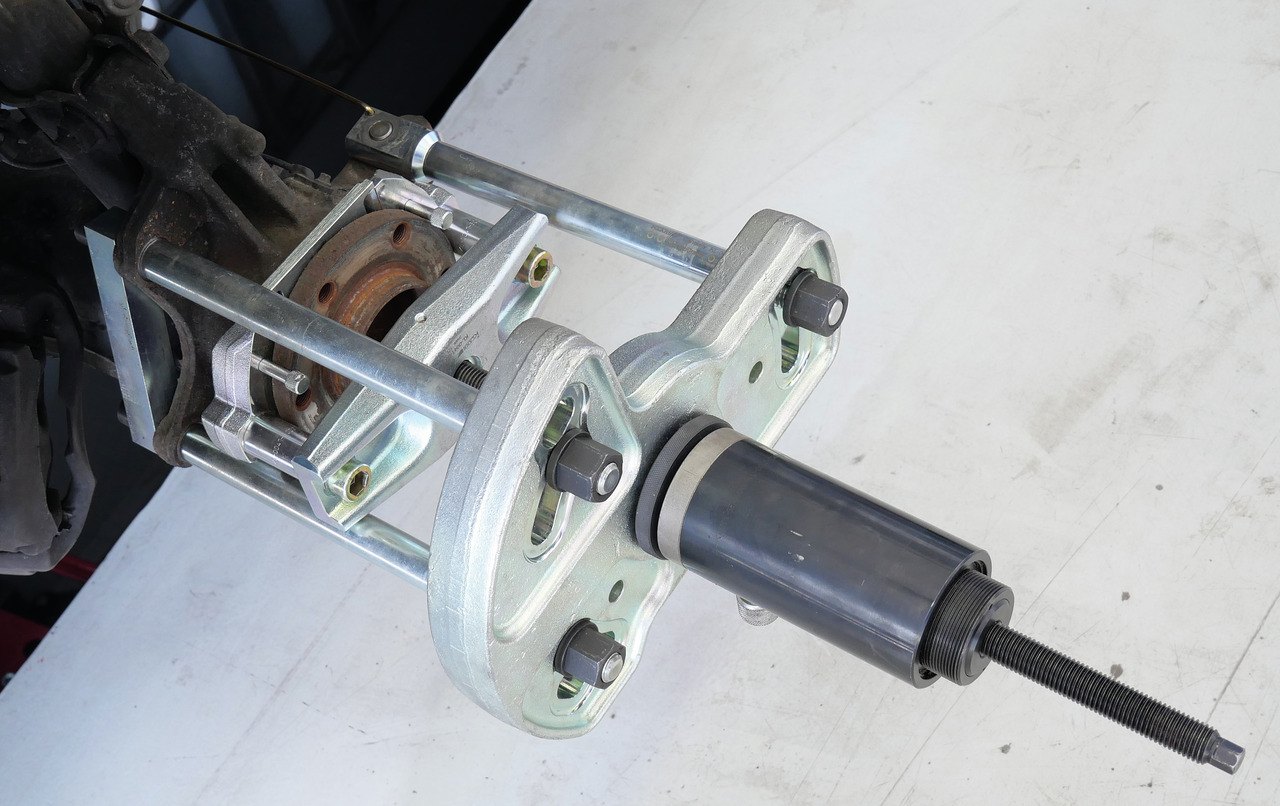

For quick and professional removal and installation of wheel bearing unit directly on the vehicle., The particular construction of the tool particularly enables the removal and installation of wheel bearing units without centre bore., Thereby the wheel bearing unit is directly pulled out via the wheel hub and pressed in again damage-free via the outer ring of the wheel bearing., Currently, only complete steering knuckles with pre-assembled wheel bearing units are offered by the vehicle manufacturer for repairs., A wheel alignment required as a result entails further consequential costs., The wheel bearing tool together with a wheel bearing unit from FAG (Schaeffler Automotive Aftermarket) offers a significantly more cost-effective repair solution.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 28
• Total width: 442 mm
• Total height: 151 mm
• Total depth: 357 mm
• Net weight: 34 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-0041-5001 - Grundplatte

  1x KL-0041-5002 - Abstützstange, Querbohrung

  2x KL-0041-5009 - Abstützstange, 275 mm

  3x KL-0041-5006 - Bundmutter M18

  1x KL-0041-5010 - Adapter

  4x KL-0041-5004 - Scheibe, Ø 19 mm

  1x KL-0041-5012 - Achsschenkel-Haltebügel

  2x KL-0041-5005 - Zylinderschraube, M14x70

  1x KL-0041-5003 - Schraube mit Kegel, M16

  1x KL-0041-5014 - Schraube mit Kegel, M12

  1x KL-0035-0023 - Mutter, M12

  1x KL-0066-0004 - U-Scheibe, Ø 12 mm

  1x KL-0041-5007 - Verstärkungsleiste, 140 mm

  1x KL-0041-5008 - Verstärkungsleiste, 196 mm

  1x KL-0041-5013 - Spannmutter

  1x KL-0041-5030-2 - Verschlussplatte

  3x KL-0041-5024 - Rändelschraube, M14

  2x KL-0041-5025 - Haltestift

  1x KL-0041-503 - Zug- / Druckplatte, Ø 92 mm

  1x KL-0039-1920-1 A - Zugspindel, M20

  1x KL-0041-5211-9 - Schaumstoffeinlage

  1x KL-0041-5212-9 - Schaumstoffeinlage

  2x KL-4600-1094 - Kunststoffkoffer, leer

• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Compatible with wheel bearing units without center bore at the front axle, such as in Mercedes Vito/V-Class (W447) and Vito/Viano (W639) with rear-wheel drive.
• Required accessories: Hydraulic drive (17 t): KL-0040-2500 - Hydraulic cylinder 17 t KL-0215-35 M25 - Hydraulic pump
• Storage: L-BOXX
• Drive type: hydraulic
• Load (max.): 17 t
