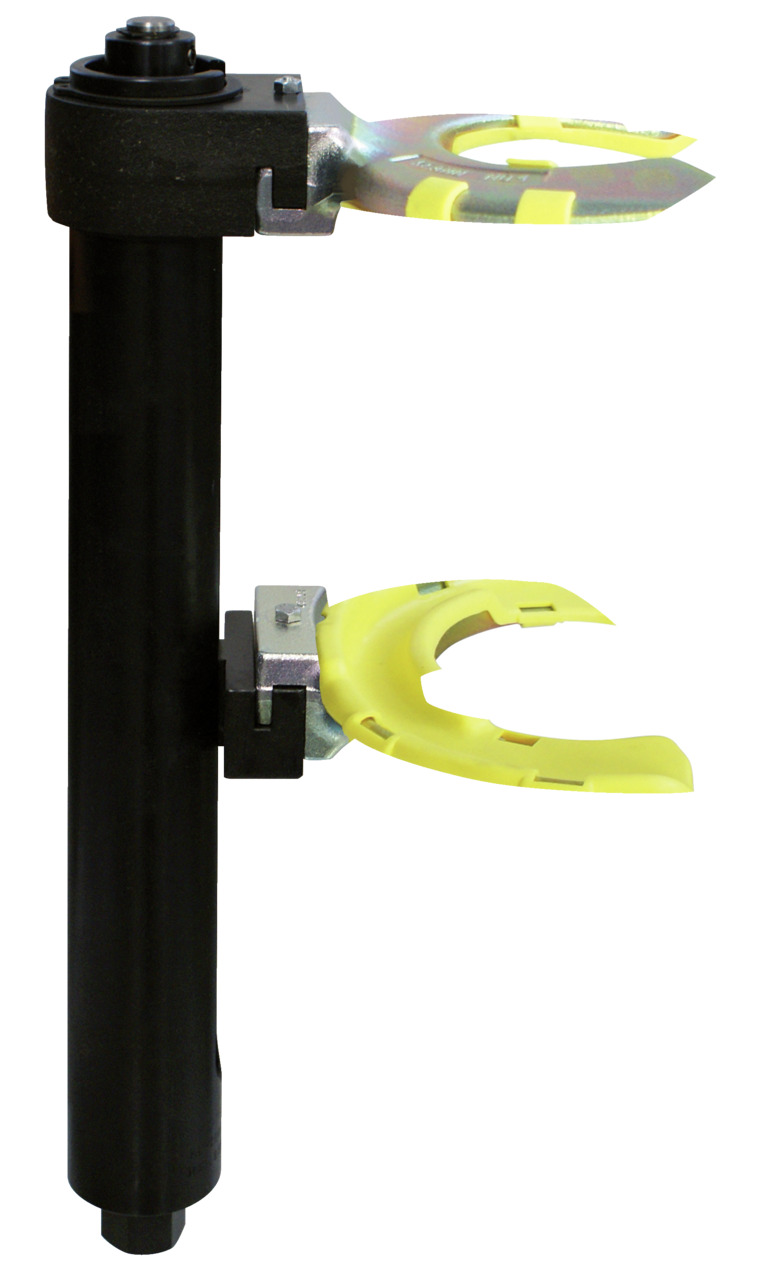

Spring compressor

The spring compressor KL-2000 SP, including spring retaining pairs KL-1510 SP size 1N and KL-1520 SP size 2N is suitable for replacing the right-hand coil springs with a spring diameter of 65 (inside) - 195 (outside) mm and shock absorbers on passenger car chassis systems., * In combination with the spring retainer accessories., Due to the anti-slip protective inserts, the spring is prevented from turning out and the sensitive spring surface coating from being damaged.

Features:

• Country of origin: Germany
• Customs tariff number: 82057000
• Contents (Qty of pieces): 5
• Net weight: 9,4 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-2000-100 - Spannzylinder

  1x KL-1510-SP - Federhalterpaar Gr. 1N, mit Schutzeinlage

  1x KL-1520-SP - Federhalterpaar Gr. 2N, mit Schutzeinlage

• Total length: 410 mm
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Suitable for suspension strut axles with a spring diameter of 90 mm (inside) - 190 mm (outside).
• Version: with Protective Insert
• Clamping width (min.): 45 mm
• Clamping width (max.): 290 mm
• Drive connector hexagon: 24 mm
• Spring Ø, inner (min.): 90 mm
• Spring Ø, outer (max.): 190 mm
• Note: Further spring retainers for spring diameters of 65mm (inside) - 195mm (outside) available.
• Load (max.): 8.500 N
• Distance to work: 245 mm
• Breaking point: 32000 N
