King Pin Press, 65t, with

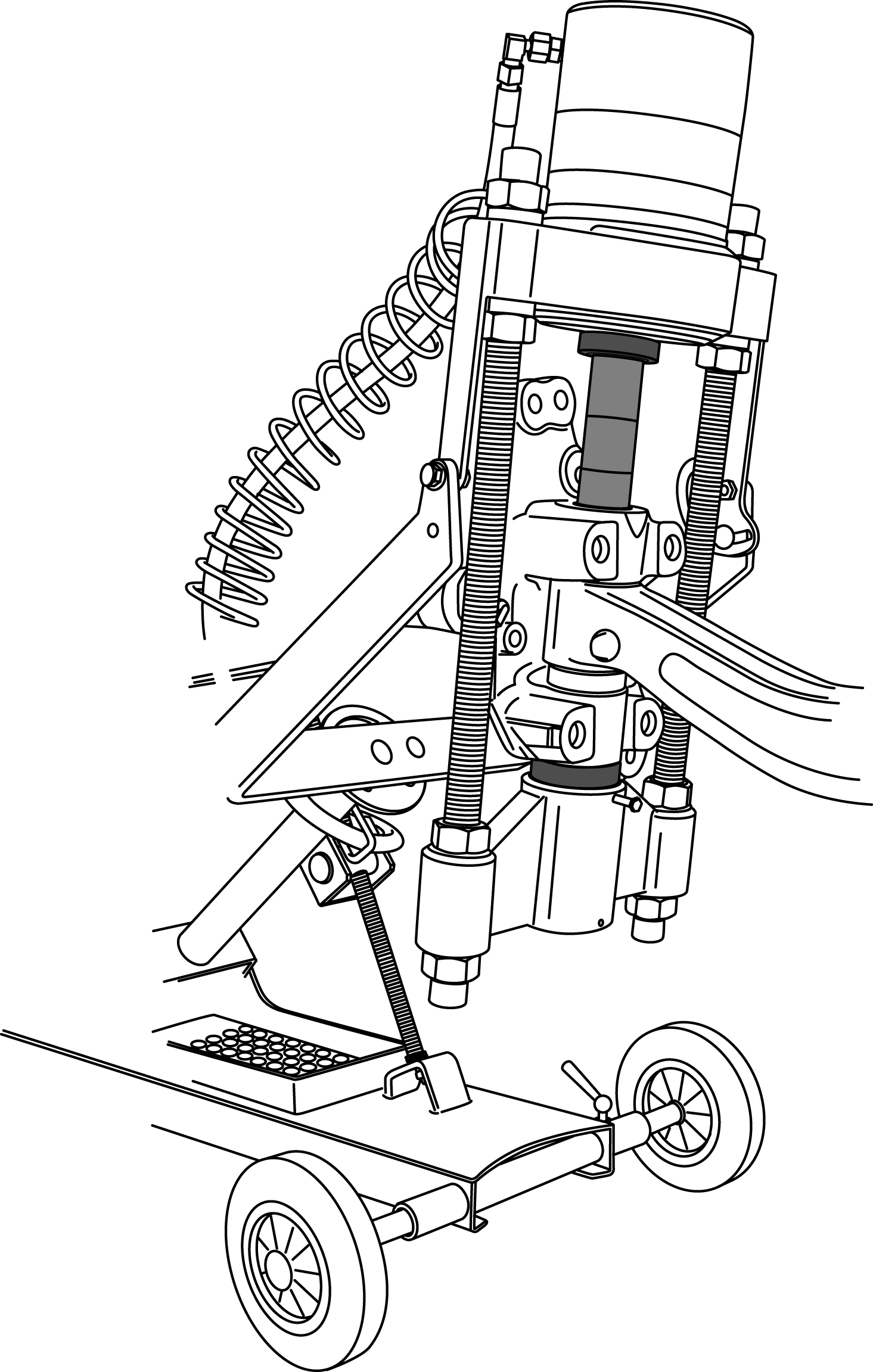

Designed for the quick and professional pressing out/pressing in of king pins found on HGVs. The king pin press with its adjustable press frame has been developed and adapted to satisfy the latest safety requirements. Thanks to its compact and ingenious design, the king pin press not only saves a lot of time but also allows for easy and, above all, safe operation. The heavy-duty 65t hydraulic cylinder with integrated hand pump and the pneumatic quick-stroke ‘extend/retract‘ valve enable even severely stuck king pins to be extracted with ease., The king pin press with its adjustable press frame has been developed and adapted to satisfy the latest safety requirements. Thanks to its compact and ingenious design, the king pin press not only saves a lot of time but also allows for easy and, above all, safe operation., The heavy-duty 65t hydraulic cylinder with integrated hand pump and the pneumatic quick-stroke ‘extend/retract‘ valve enable even severely seized king pins to be extracted with ease., Pros: • One-man operation, • Developed according to the newest safety requirements., • Universal fit, on the vehicle as well as free-standing., • High time saving, • Universally adjustable press frame which can be turned by 180°., • Easy and quick positioning on the vehicle due to the quick adjustment with three axles.

Features:

• Country of origin: Germany
• Customs tariff number: 82055980
• Contents (Qty of pieces): 15
• Total width: 650 mm
• Net weight: 130 kg
• 1000 V insulated: No
• VDE certified: No
• Parts list (Text):

  1x KL-1000-200 A - Achsschenkelbolzenpresse

  1x KL-1000-230 A - Druckstück-Satz

• OEM: W 739 589 00 33 00
• Total length: 1.200 mm
• Target groups: Construction and commercial vehicles
• Suitable for: Fits universally for commercial vehicles.
• Stroke: 120 mm
• Total swivel angle: 180°
• Width, inside (press frame): 290 mm
• Length, inside (press frame): 480 mm
• Oil volume: 3500 cm3
• Air connection (max.): 13 bar
• Nominal pressure: 420 bar
• Press force: 65 t
