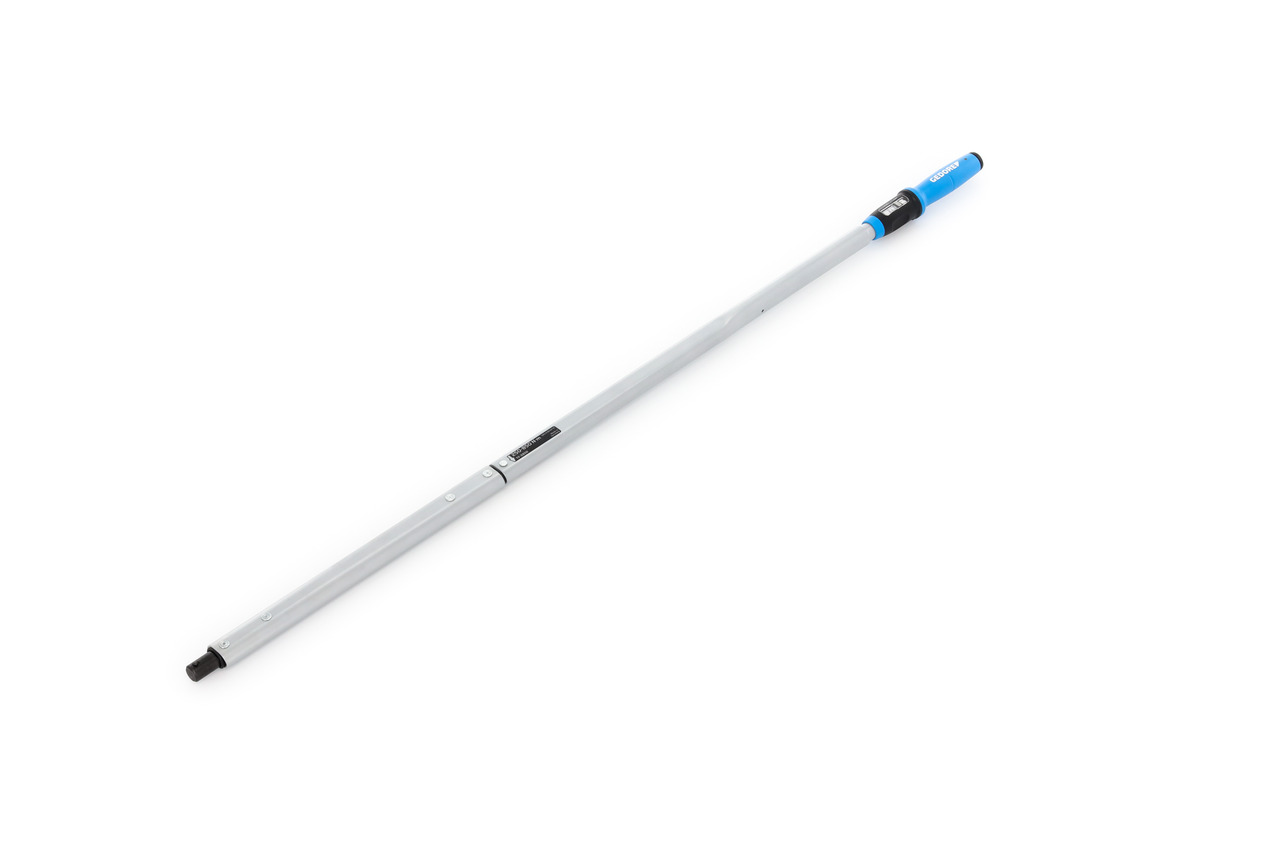

Torque wrench TORCOFIX Z

Use: Controlled screw tightening in the range of 250 - 850 Nm / 185 - 630 lbf·ft, Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades, Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A; adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %, Incl. traceable test certificate (DIN EN ISO 6789-2:2017), For controlled right- and left-hand tightening (change tool for changing direction), Spigot holder Ø 22 mm, Working caliber gauge: 56 mm (Ø 22 mm), Robust, matt powder-coated tubular steel construction, with galvanized ratchet and high-quality plastic parts, New ergonomic handle, shaped according to the natural grip position of the hand, Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle, Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window, With vernier scale for Nm main scale for setting intermediate scale values; lbf-ft setting only via main scale, Vertical alignment of the scale, torque adjustment therefore suitable for left and right handers, Scale line positioned directly above the scale prevents reading errors (parallax errors), Unit labeling integrated in the scale frame and also protected by viewing windows,, Precise jump-off mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached, Incl. roll away protection, prevents rolling away when the tool is put down

Features:

  • Country of origin: Germany
  • Customs tariff number: 82041100
  • Reach: compliant
  • Contents (Qty of pieces): 1
  • Total width: 45 mm
  • Total height: 44 mm
  • Net weight: 4,39 kg
  • 1000 V insulated: No
  • VDE certified: No
  • Total length: 1.355 mm
  • Material: Tubular steel construction
  • Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Utilities Service Agriculture Oil & Gas
  • Range of application: Assembly Series assembly Production Maintenance and repair
  • Torque (max.): 850 Nm
  • Drive type/drive: Drive pin
  • Torque (min.): 250 Nm
  • Scale type: dual
  • Precision +/-: +/- 3 %
  • Tightening direction: Left and right
  • Fixed setting: No
  • Test certificate: DIN EN ISO 6789-2:2017
  • Vernier: 1 Nm
  • Graduation: 10
  • Torque range (min./max.): 250 Nm - 850 Nm
  • Trigger mechanism: Short path triggering
  • Safety: Locking pin
  • Depth gauge: 56,0 mm
  • Storage/Content: Box
  • Calibration length: 1276,8 mm
  • Lever length drive side: 465 mm
  • Receptacle width: 22 mm
  • Drive size: 22 mm
