Supporting Device for Control Arm

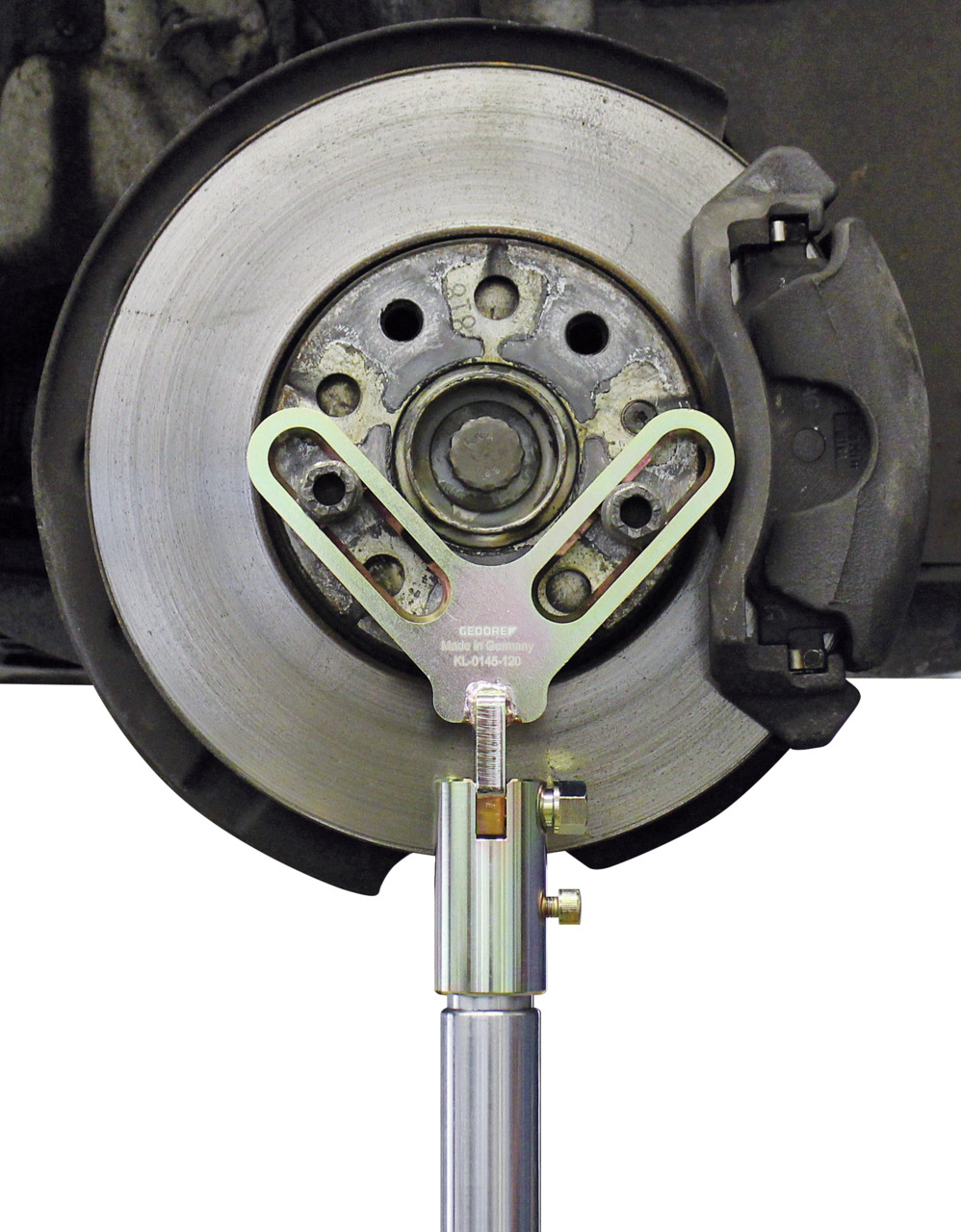

The device is used in conjunction with a transmission jack for supporting and securing control arms. The support takes place via the wheel hub. Thanks to its special design, the device can be fixed at camber angle position, thus, ensuring the correct raising and lowering of control arms/axles to specified positions. This tool will greatly simplify the removal/installation of suspension struts., The support device, in conjunction with a transmission jack, enables the wheel suspension to be properly supported and fixed, e.g. when removing and installing the suspension strut or when replacing the axle control arms., The support is provided by the wheel hub and thus ensures a secure hold in the respective position., Due to its special design, the support device is adjustable in the camber angle., This allows the suspension to be lowered and raised precisely at different angles.

Features:

• Country of origin: Germany
• Customs tariff number: 84254200
• Contents (Qty of pieces): 1
• Total height: 205 mm
• Net weight: 1,2 kg
• 1000 V insulated: No
• VDE certified: No
• Target groups: Automotive Construction and commercial vehicles
• Suitable for: Universally compatible with wheel hubs with a bolt circle diameter of 5x130 mm, 5x120 mm, 5x112 mm, 5x100 mm, and many more.
• Mounting diameter: 30 mm
• Load (max.): 300 kg
• Angle/tilt angle: +/- 45°
